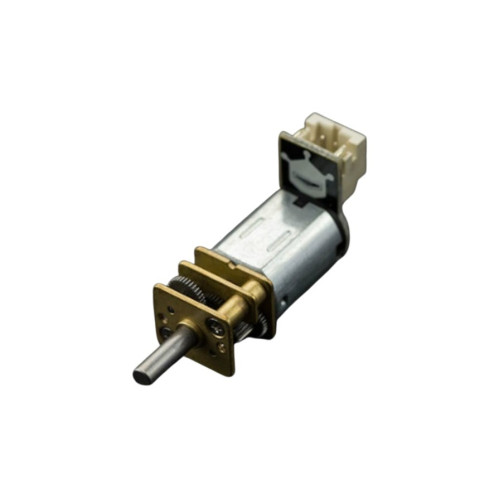

6V 290RPM 75:1 Micro Gear Motor
This motor has a 9mm long D-profile output shaft. The brass front plate features two threaded mounting holes for M1.6 screws. The motor features a PH2.0 connector, which is simple to connect and solder-free. An integrated circuit increases interference resistance. This motor is designed for use at 6V, but it can be operated with as low as 1V.
Technical details
- Voltage: 1V to 6V
- Motor speed: 290RPM
- Ratio: 75:1
- Shaft length: 9mm
- No-load current: 70 mA
- Torque: 0.8 Kg*cm/0.08 Nm
- Load current: 1A

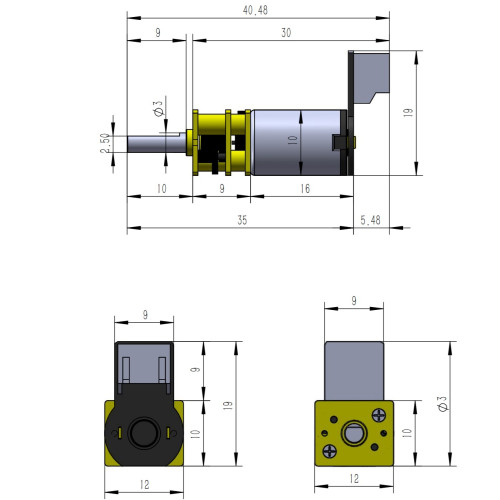

- Dimensions: 12 x 10 x 35mm
- Weight: 15.5g
What's included:
- 1x 6V 290RPM 75:1 Micro gear motor
- 1x PH 2.0 connection cable 30cm
- 1x connection cable with solder connection 30cm
6V 290RPM 75:1 Micro Gear Motor
- Brand: DFRobot
- Product Code: 421829
- Availability: In Stock
-
CHF13,50
- Ex Tax: CHF12,49
