12V 83RPM 45Kg*cm Gear Motor with Encoder

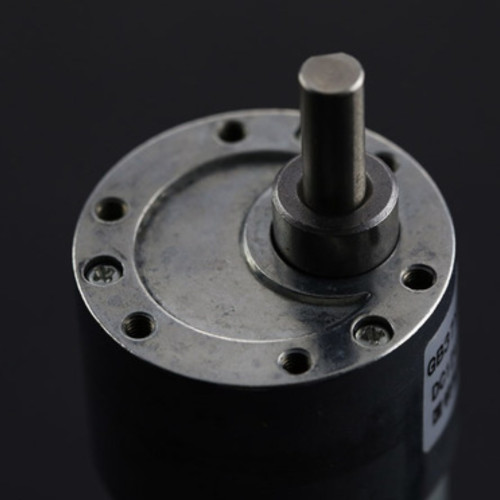

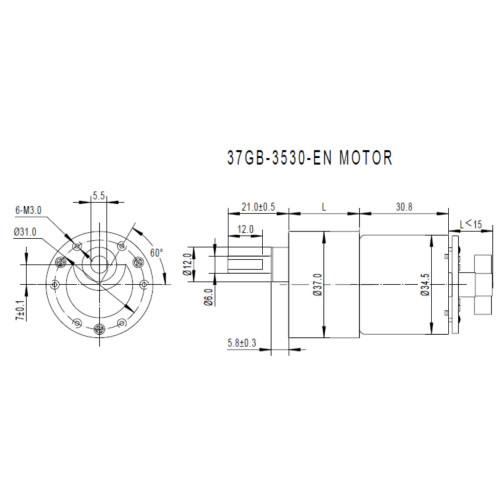

This is a powerful 12V motor with a 131:1 metal gearbox and an integrated encoder that has a resolution of 16 counts per revolution of the motor shaft, which amounts to 2096 counts per revolution of the gearbox output shaft. The motor has a 15.5mm long, D-profile output shaft with a diameter of 6mm. This motor is designed for 12V operation, but can already be operated at a voltage of 1V. The front panel has six evenly distributed mounting holes with threads for M3 screws around the outer edge. These mounting holes form a regular hexagon and the center points of the adjacent holes are 15.5mm apart. This motor is an ideal option for your mobile robot project.
