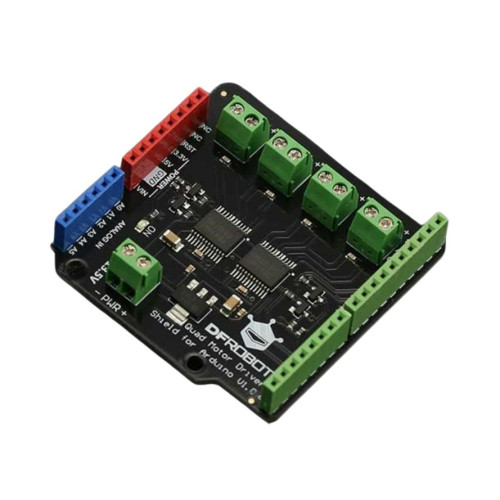

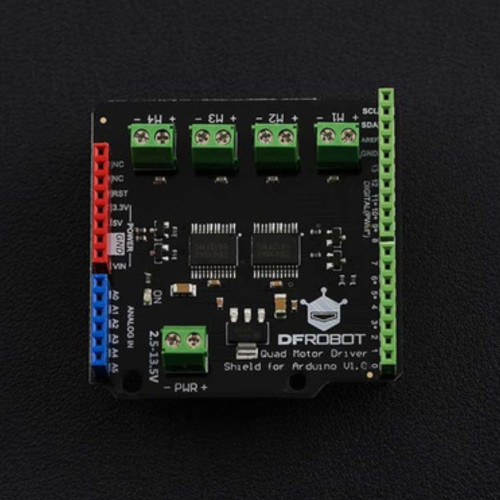

Quad DC Motor Driver Shield for Arduino
The Quad Motor Driver Shield for Arduino is designed for use with 5V and 3.3V controllers. It can simultaneously control up to four DC motors with 8 pins. This shield provides PWM speed control and polarity control, using the efficient TB6612FNG motor driver chips, which are smaller than traditional L298N chips. Safety features include integrated low voltage detection and thermal shutdown. This module is perfect for all your DIY projects.
Documentation:
Technical Details:
- Manufacturer: DFRobot
- Manufacturer SKU: DRI0039
- VM Motor Power Supply: 2.5 V to 13.5 V
- VCC Logic Power Supply: 2.7 to 5.5 V
- Output current: 1.2A continuous current (per channel)
- Start / peak current: 2A (continuous pulse) / 3.2A (single pulse)
- Arduino control connection: Digital pins 3, 4, 5, 6, 7, 8, 11, 12
- Operating temperature: -20 to 85 ℃
- Dimensions: 53 x 52 x 10mm
- Weight: 28g
Delivery Content:
- 1x Quad DC Motor Driver Shield for Arduino
Quad DC Motor Driver Shield for Arduino
- Brand: DFRobot
- Product Code: 422642
- Availability: In Stock
-
CHF16,90
- Ex Tax: CHF15,63
