ESP32 5-DOF Open-Source Robotic Arm RoArm-M1

The RoArm-M1 is a versatile, open-source robotic arm based on the ESP32 platform, offering 5 degrees of freedom. With high load capacity thanks to the 30kg.cm strong ST3215 servo, it is ideal for a wide range of applications, from precise motion sequences to control via a Raspberry Pi or other computers. Thanks to flexible control modes, such as angle control or coordinate control, you can program the arm precisely to your needs. The robotic arm also supports wireless control via WiFi or ESP-NOW, making it particularly flexible in application. With extensive ROS-2 integration and support for multiple host computers, you gain a wealth of development and learning opportunities. The RoArm-M1 is equipped with a stainless steel gripper, a carbon fiber arm, and an aluminum housing, making it both robust and lightweight. Perfect for anyone looking for an affordable, high-performance robotic arm.

Recommended Accessories:

• Raspberry Pi New Raspberry Pi 5 / 8GB

Features:

• Open-source code: Available for custom developments.
• The RoArm-M1 is based on the ESP32 platform and supports WiFi as well as UART communication.
• Control can be performed through angle settings or coordinates, depending on requirements.
• There is a mode for motion recording and replay to automate complex tasks.
• The arm supports various host computers such as Raspberry Pi, Jetson Nano, and PCs.
• The housing is made of aluminum, while the arm is made of carbon fiber, ensuring high stability with low weight.
• Extensive learning resources such as ROS-2 demos, inverse kinematics, and cross-platform web applications are provided.

Application Examples:

• Precision assembly in electronics manufacturing.
• Programming for use in research and development.
• Control via a Raspberry Pi for automatic sorting tasks.
• Educational tool for robotics and programming.
• Use in DIY projects for complex motion sequences.

Documentation:

• Waveshare Wiki

Board Overview:

1. ESP32-WROOM-32 Main Controller
2. Servo Control Connector
3. OLED Display
4. Download Button
5. Reset Button
6. Type-C Connector, Download/UART Communication
7. USB-to-UART Circuit
8. RGB LED
9. 12V DC Connector
10. RGB LED Expansion Connector
11. Serial Bus Servo Control Circuit

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 23937
• Board: ESP32-WROOM-32
• Degrees of Freedom: 5-DOF
• Servo: 30kg.cm ST3215 Serial Bus Servo
• Maximum Torque: 30kg.cm
• Maximum Arm Load: 300g at 360mm, 850g at 120mm lever arm
• Host Computers: Raspberry Pi 4, Jetson Nano, PC
• Supported Platforms: ROS-2, Cross-Platform Web Applications
• Kinematics: Inverse Kinematics Supported
• Communication: WiFi, Bluetooth, ESP-NOW, UART
• Material: Stainless Steel, Carbon Fiber, Aluminum

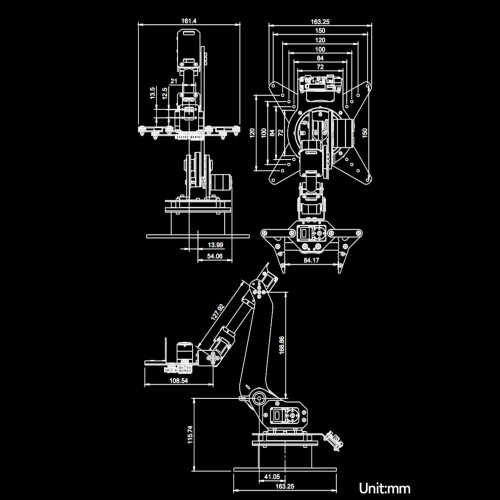

• Dimensions: 165 x 165 x 360 mm
• Weight: 2890g

Contents:

• 1x ESP32 5-DOF Open-Source Robotic Arm RoArm-M1
• 1x Power Supply
• 1x USB Cable
• 1x Mounting Hardware
