ESP32 4-DOF Robot Arm Kit RoArm-M2-S with High-Torque Serial Bus Servos

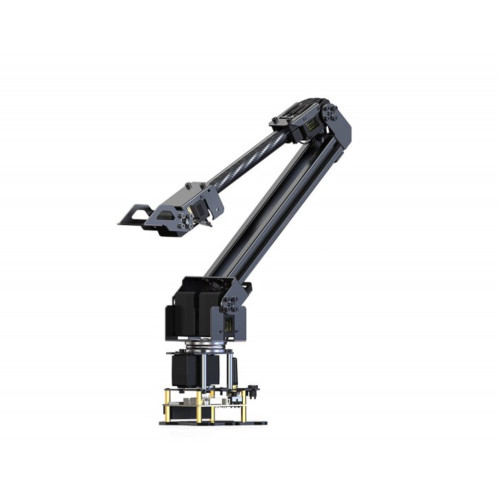

Discover the RoArm-M2-S, an innovative 4DOF (Degrees of Freedom) smart robot arm that heralds a new era in robotics. This robotic arm is distinguished by its lightweight design, weighing less than 850g and offering an effective payload. With a 360° omnidirectional base and three flexible joints, its working area extends to a diameter of up to one meter, allowing great flexibility and reach. The Joint-Direct-Drive design not only enhances repositioning precision, but also increases structural reliability. Thanks to the innovative dual-drive technology, the torque of the shoulder joint is doubled. The robot arm is powered by a powerful ESP32 MCU main control module that supports multiple wireless control modes and offers a variety of interfaces and communication protocols. The user-friendly, cross-platform web interface greatly simplifies entry. The robot arm is compatible with ROS2 and various host computers, supporting numerous wireless and wired communication modes.

Features:

Expandability: Supports the customization of multifunctional EoAT (End of Arm Toolings).
Omnidirectional Working Area: Provides diverse movement possibilities thanks to the 360° rotating base.
User-friendly: Easy-to-operate web interface and coordinate control mode.
Open-source code: Available for custom further developments.
Lightweight structure: Made from carbon fiber and 5052 aluminum alloy.
Direct-Drive design: Provides a repeatability accuracy of 0.088°.
Dual-Drive technology: Increases the torque in the shoulder joint.
Powerful main control: ESP32 MCU, supports various interfaces and protocols.
Multi-platform support: Compatible with ROS2 and various host computers.
Extensive tutorials: Graphic and video instructions facilitate the entry.

Application Examples:

Educational institutions for robotics and programming courses.
Research projects in robotics and automation.
DIY projects and hobbies in the fields of electronics and robotics.
Innovation projects in enterprises and startups.

Documentation:

Waveshare Wiki

Technical Specifications:

Manufacturer: Waveshare
Manufacturer SKU: 25974
Main Control: ESP32 MCU.
Degrees of Freedom (DOF): 4
Operating Space: Horizontal Diameter: 1090mm (Max, 360° omnidirectional), Vertical: 798mm (Max)
Operating Voltage: 12V 5A power supply, supports 3S lithium batteries (not included)
Payload: 0.5kg at 0.5m
Repositioning accuracy: ≈±4mm (under same load)
Servo Rotation Speed: 40 RPM (without load, without torque limit)
Operating Range: Base-360°, Shoulder-180°, Elbow-180°, Hand-135°/270°
Drive Type: TTL serial bus servo, direct drive joint
Number of Servos: 5
Joint angle sensor: 12-bit 360° magnetic encoder
Servo Torque: 30KG.CM at 12V
Joint Feedback Information: Servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature and servo operating mode
Main Control: ESP32-WROOM-32
Main Control Module Features: WiFi, BT, Dual Core, 240MHz
Wireless Control Mode: 2.4G-WiFi, ESP-NOW
Wired Control Mode: USB, UART
Manual Operation Mode: WEB control interface
Host Operating Mode: UART/USB/ESP-NOW*/HTTP communication via JSON data command format (* Feedback information is not available in the ESP-NOW communication mode)
Host Support: USB connection devices including Raspberry Pi, Jetson Orin Nano and PC.
EOAT Function: Clamping function by default, can be changed to an additional degree of freedom
LED Power: ≤1.5W
OLED Screen Size: 0.91 inch
Additional Features: 2-channel 12V power supply switch, 9-DOF-IMU
Supported Table Edge Thickness of Clamp: <72mm
Weight: 1794g
