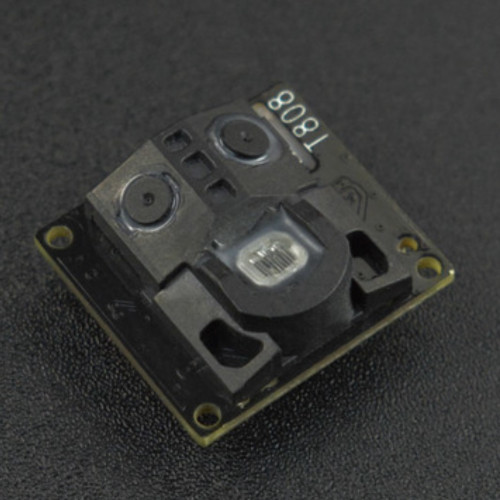

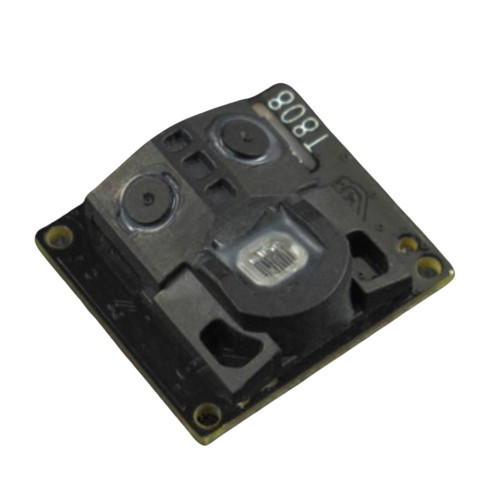

YDLIDAR GS2 Linear Array Solid LiDAR 25-300mm 110°

The Linear Array Solid LiDAR utilizes triangulation, advanced optics, electrical components, and algorithms to provide a broad view of up to 100 degrees and deliver accurate point cloud data for environment detection. The GS2 model is particularly suitable for real-time monitoring of edges, which is crucial for robot vacuum cleaners and service robots. The GS2, measuring only 25.6 x 23.6 x 10.8 mm, can be flexibly integrated into small intelligent devices and provides a precise detection solution for smart equipment. The GS2 assists robots in navigating through blind spots and improves obstacle avoidance performance. The compact and lightweight GS2 is suitable for a variety of robotics applications.

Attention: The Lidar itself must not be powered with 5V but with a maximum of 3.2-3.4V DC!

Features:

• High precision, stable performance, and no rotating parts
• Detection angle up to 0.6°
• Smallest detectable object diameter 3 mm
• Large FOV up to 100°
• Detection range from 25mm-300mm
• Meets FDA Class I safety standard
• Lifespan 10000h

Documentation:

• DFRobot Product Page
• User Manual
• Data Sheet

Technical Details:

• Manufacturer: DFRobot
• Manufacturer SKU: DFR1030
• Operating voltage Lidar: 3.2-3.4V DC
• Power and data: USB Type C
• Starting current: 240mA
• Operating current: 100mA
• Range: 25-300mm
• Frequency of range: 28Hz
• Laser wavelength: 850nm
• Field of view: 100°
• Resolution of the angle: 0.6°
• Relative error: Distance ≤ 100mm (≤3mm), 100 ＜ Distance ＜ 200mm (≤3%), 200 ≤ Distance ＜ 300mm (≤8%)
• Angular error: ±3°
• Operating temperature: -10~40°C
• Storage temperature: -30~70°C
• Lifetime: 10000h
• Dimensions: 25.6mm x 23.6mm x 10.8mm
• Weight: 46g

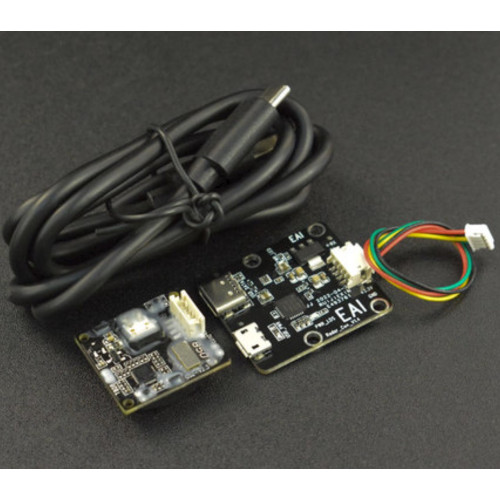

Package Contents:

• 1x YDLIDAR GS2 Linear Array Solid LiDAR 25-300mm 110°

• 1x Adapter Board

• 1x 4Pin Connector Cable

• 1x USB to Type-C Cable
