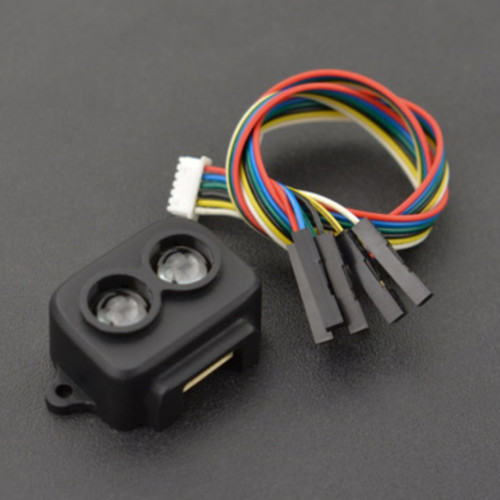

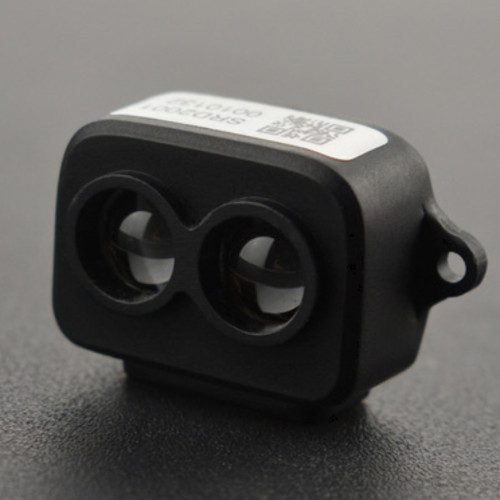

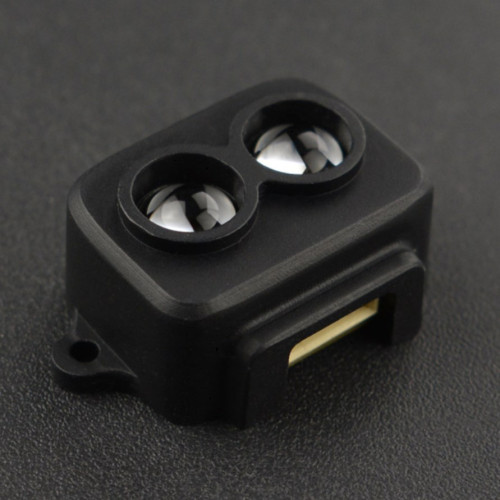

DFRobot TF-Luna ToF Micro Single-point Ranging LiDAR
TF-Luna is a single-point distance Lidar based on the ToF principle. With its unique optical and electrical design, it can perform stable, accurate and highly sensitive distance measurement. The detection range is up to 8m, the blind zone 0.2m and the distance resolution is 1cm. The supply voltage of TF-Luna is 5V (TTL level 3.3V). Equipped with a UART communication interface, the TF-Luna is compatible with Arduino, Raspberry Pi,ESP32, ESP8266,STM32 and other platforms.
Documentation:
Technical Details:
- Manufacturer: DFRobot
- Manufacturer SKU: SEN0340
- Operating Voltage: 5V
- TTL Level Voltage: 3.3V
- Data Interface: UART (no I2C support)
- Resolution: 1cm
- Frequency: 100Hz
- Ambient Light Resistance: 70klux
- Detection Range: 0.2m to 8m
- FoV: 2°
- Accuracy: +-6cm (over the range of 0.2m to 3m)
- Cable Length: 30cm
- Dimensions: 35 x 21.25 x 13.5mm
- Weight: 11g
Package Contents:
- 1x DFRobot TF-Luna ToF Micro Single-point Ranging LiDAR
- 1x Connection Cable
DFRobot TF-Luna ToF Micro Single-point Ranging LiDAR
- Brand: DFRobot
- Product Code: 421532
- Availability: In Stock
-
CHF29,90
- Ex Tax: CHF27,66
