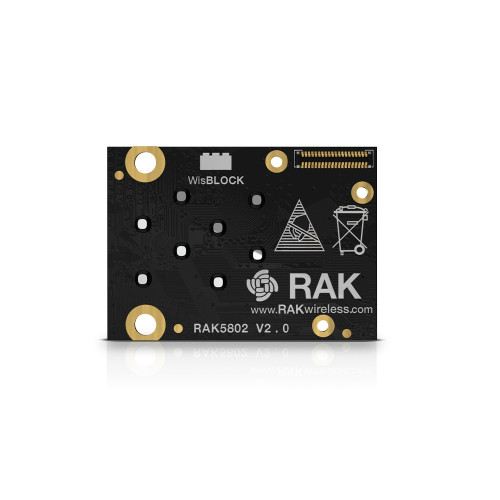

WisBlock RAK5802 RS485 Module

This is a WisBlock RS485 expansion module from RAK Wireless. The RAK5802 expands your WisBlock project with an industrial RS485 port. The module converts RS485 signals into UART signals, which are then read out by the WisBlock Core.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions to create your own IoT-LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike conventional plug connections, the modules are screwed onto the base board. This creates a secure and reliable attachment with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.

Recommended accessories:

• WisBlock RAK5005-O Base Board

Features:

• RS485 to UART Converter

• Battery and 3.3V output for sensors

• 18kV ESD protection

• 1 RS485 port

Documentation:

• RAK5802 Documentation

• WisBlock QuickStart Guide

Technical details:

• Manufacturer: RAK Wireless

• Manufacturer SKU: 100003

• Model: RAK5802

• Voltage: 3.3V

• Interface: RS485

• Dimensions: 35 x 25 x 17mm

• Weight: 9g

Delivery content:

• 1x WisBlock RAK5802 RS485 module
