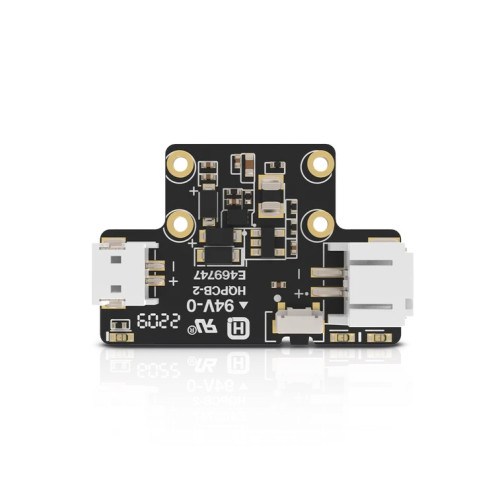

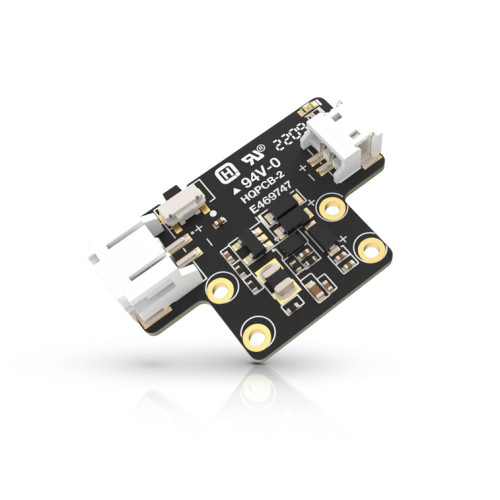

WisBlock RAK19015 Solar Battery Power Board

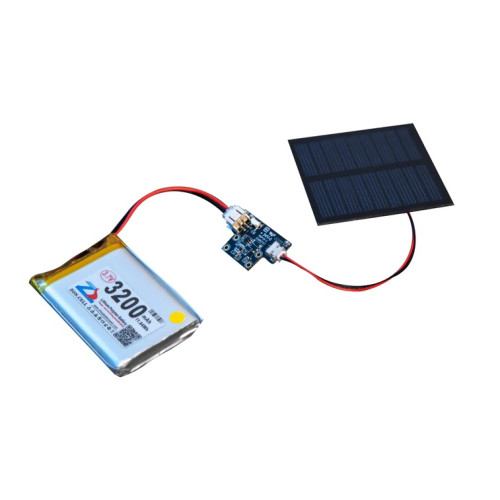

The RAK19013 WisBlock LiPo Solar Module is a power board with a battery connection, a solar panel connection, a reset button, a charging LED, and a power connection, which can be used with a WisBlock base plate via the power slot. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO extension modules can be mounted on a WisBlock base board. Unlike conventional plug connections, the modules are fixed onto the base board with screws. This creates a secure and reliable fixing with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suited for applications in prototype construction in the professional or hobby area.

Features:

• Flexible modular system, enabling modular function realization and expansion
• Power-saving battery power supply
• Supports charging lithium batteries
• Supports solar charging
• Meets the design at industrial level


Documentation:

• RAK19013 Documentation
• WisBlock Quickstart Guide

Technical Details:

• Manufacturer: RAK Wireless
• Model: RAK19013
• Manufacturer SKU: 110089
• WisBlock Slots: 1x Power Slot
• Pin Connections: 1x 2pin Battery Interface, 1x 2pin Solar Interface
• LEDs: 1x Status LED, 2x Programmable LED
• Button: Reset button
• Battery Voltage: -0.3-4.3V (optimal: 3.7V)
• Solar panel Voltage: -0.3-5.5V
• Operating temperature range: -35°C to 75°C (optimal: 25°C)
• Storage temperature range: -40°C to 80°C (optimal: 25°C)
• Dimensions: 20 x 30 x 7.5mm
• Weight: 5.9g

Scope of delivery:

• 1x WisBlock RAK19015 Solar Battery Power Board
