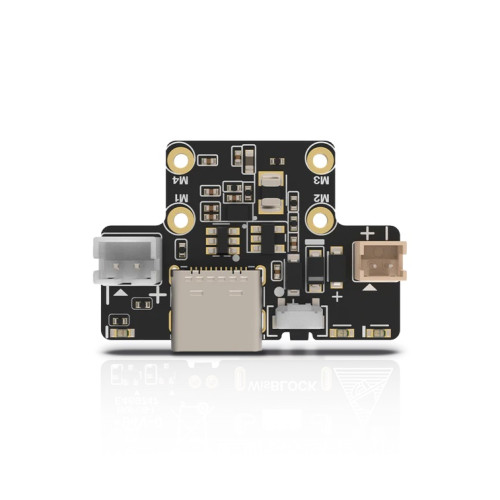

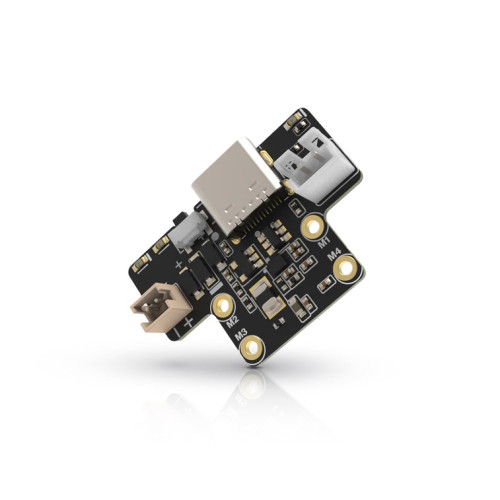

WisBlock RAK19012 LiPo USB Solar Power Board

RAK19012 WisBlock USB LiPo Solar Power Slot Module is a power board with a USB Type-C connector, a battery connector with built-in charger, a solar panel connector, a status LED, configurable LEDs and a reset button and a WisBlock Power Slot, which can be used with a WisBlock base plate. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions to create your own IoT LoRaWAN nodes. Various CPU, sensor, and IO extension modules can be mounted on a WisBlock Base Board. Unlike conventional plug connections, the modules are fixed with screws on the base board. This creates a secure and reliable attachment with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in the prototype construction of professional or hobby areas.

Features:

• USB type-C connection for programming and debugging of the WisBlock Core
• Compatible with rechargeable LiPo batteries

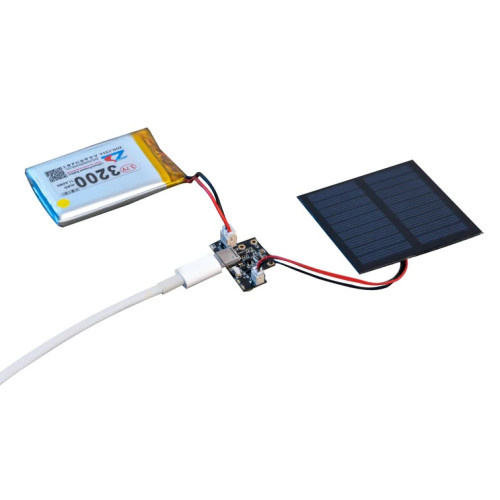

• Connection for solar panel to recharge the battery
• Built-in battery charging chip
• LED for charging status and user configurable LEDs

Documentation:

• RAK19016 Documentation
• WisBlock Quickstart Guide

Technical Details:

• Manufacturer: RAK Wireless
• Model: RAK19012
• Manufacturer SKU: 110088
• WisBlock Slots: 1x Power Slot
• Pin connections: 1x 2pin Battery Interface, 1x 2pin Solar Interface
• LEDs: 1x Status LED, 2x Programmable LEDs
• Button: Reset button
• USB Connector: Type-C
• Battery Voltage: -0.3-4.3V (optimal: 3.7V)
• Solar Panel Voltage: -0.3-5.5V
• Operating temperature range: -35°C to 75°C (optimal: 25°C)
• Storage Temperature Range: -40°C to 80°C (optimal: 25°C)
• Dimensions: 30 x 20 x 8.4mm
• Weight: 30g

Package Contents:

• 1x WisBlock RAK19012 LiPo USB Solar Power Board
• 1x USB cable
