WisBlock RAK14006 Rotary Encoder

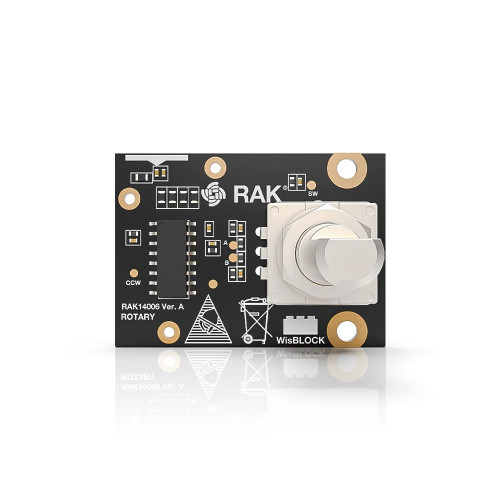

The RAK14006 contains a rotary encoder module named PEC11L-4125F-S0020 from BOURNS. The switch allows the detection of the direction of rotation and the number of steps in user inputs. In addition, there is a separate push button that can be used independently.

The WisBlock ecosystem by RAK Wireless offers compact and modular solutions to build your own IoT-LoRaWAN nodes. On a WisBlock base board, various CPU, sensor, and IO extension modules can be mounted. Unlike with conventional connectors, the modules are fixed with screws on the base board. This creates a reliable and solid fixation of industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.

Note: The module is connected to a RAK BaseBoard through the 40-pin IO slot.

Recommended Accessories:

• WisBlock RAK5005-O Base Board
• WisBlock RAK19007 Base Board 2nd Gen
• WisBlock Base Board RAK19010 with Powerslot
• WisBlock Dual IO Base Board RAK19011 with Powerslot

Features:

• Rotary encoder with an independent pushbutton switch

Documentation:

• RAK14006 Documentation
• WisBlock Quick Start Guide
• RAK Wireless Forum

Technical Details:

• Manufacturer: RAK Wireless
• Manufacturer-SKU: 100064
• Model: RAK14006
• WisBlock Connector: WisBlock IO
• Rotary Encoder:
• BOURNS PEC11L-4125F-S0020:
• Type: Incremental
• Resolution: 20 PPR
• Number of Detents: 20 (Detents)
• Power Supply: 3.3V
• Dimensions: 25 x 45 x 31.8mm
• Weight: 9.8g

Package Includes:

• 1x WisBlock RAK14006 Rotary Encoder
