RP2040-Zero Raspberry Pi Pico based MCU

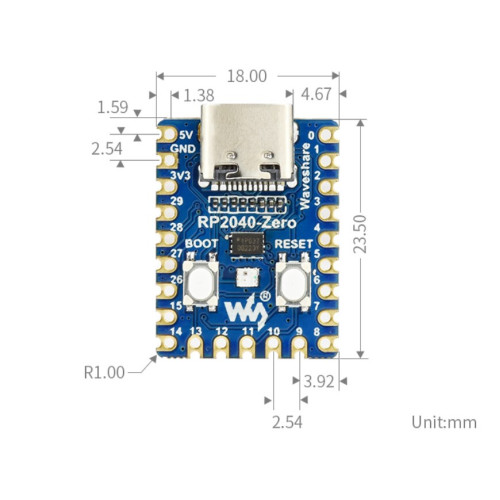

This is an even more compact version of the Waveshare Raspberry Pi Pico RP2040. The board measures only 23.5 x 18mm and uses the same RP2040 microcontroller chip as the Raspberry Pi Pico. In addition, the Pico's Micro USB interface is replaced with USB-C.

The RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB of internal RAM and support for up to 16MB of off-chip flash. A wide range of flexible I/O options includes I2C, SPI, and programmable I/O (PIO). It is suitable for beginners as well as experts. Programmable in C and MicroPython, the RP2040 adapts to a variety of applications and skill levels, and getting started is easier than ever.

Features:

• USB-C

• Dual-Core Arm Processor 133MHz

• 246KB RAM

• 2MB Onboard Flash

• 29 × Multifunction GPIO Pins

• Programmable with C/C++ and MicroPython

Documentation:

• Waveshare Wiki

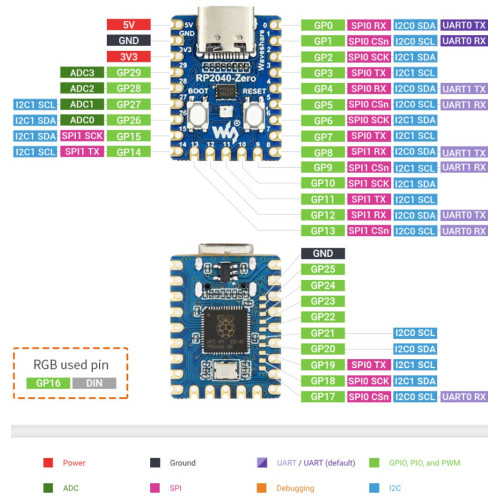

RP2040-Zero Pinout:

Technical Details:

• Manufacturer: Waveshare

• Manufacturer SKU: 20187

• MCU : RP2040

• Processor : Arm Cortex-M0+

• Clock Frequency: 133 MHz

• Memory: 2MB Flash 246KB RAM

• I/O: 29x Multifunction GPIO Pins


• 2x SPI

• 2x I2C

• 2x UART

• 4x 12-bit ADC

• 16x PWM


Package Includes:

• 1x RP2040-Zero Raspberry Pi Pico based MCU
