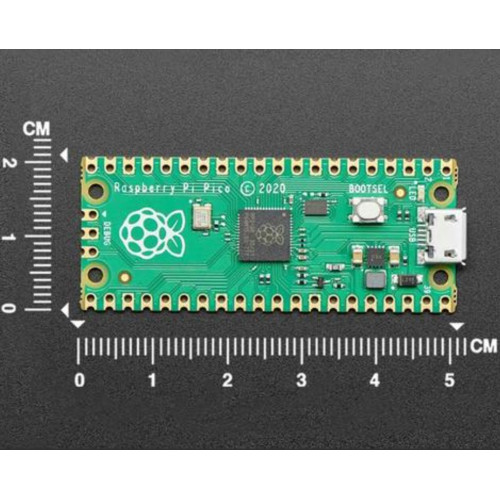

Raspberry Pi Pico Microcontroller

The RP2040 Raspberry Pi Pico is a tiny, fast and versatile board built with the Raspberry RP2040 microcontroller chip. The Raspberry Pi Pico is a cost-effective, powerful microcontroller board with flexible digital interfaces. The RP2040 was developed by Raspberry Pi and features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB off-chip flash. A wide range of flexible I/O options include I2C, SPI and programmable I/O (PIO).  It is suitable for beginners as well as experts. Programmable in C and MicroPython, Pico adapts to a variety of applications and skill levels, and getting started is easier than ever. Pico is also supported by the Arduino IDE, making the transition from Arduino to Raspberry Pi Pico very simple.

Recommended Accessory:

• 2x Male Pin Header 1 x 40 pins RM 2.54mm Straight Short Pin
• Half-Size Transparent Breadboard ZY-60
• Jumper Dupont Cable Set 10cm 60 Pieces

Documentation:

• Manufacturer Documentation

Pinout Raspberry Pi Pico:

Technical Details:

• Manufacturer: Raspberry Pi
• Microcontroller: RP2040 Dual-Core Arm Cortex-M0+ Processor
• Operating Voltage: 1.8-5.5 V DC
• Clock Frequency: up to 133 MHz
• 264KB On-Chip SRAM
• 2MB on-board QSPI Flash
• 26 Multifunction GPIO Pins, including 3 analog inputs
• 2 × UART, 2 × SPI Controllers, 2 × I2C Controllers, 16 × PWM Channels
• 1 × USB 1.1 Controller and PHY, with Host and Device Support
• 8 × Programmable I/O State Machines (PIO) for Custom Peripheral Support
• Operating Temperature: -20°C to +85°C
• Drag & Drop Programming with Mass Storage over USB
• Power-saving Sleep and Dormant Modes
• Accurate Clock and Timer on-chip
• Temperature Sensor
• Accelerated Floating Point Libraries on Chip
• Dimension: 21 x 51.3 x 3.9mm
• Weight: 4g

Delivery Content:

• 1x Raspberry Pi Pico
