MPU-6050 3-Axis Accelerometer with Gyroscope

This 3-axis acceleration sensor also features three gyroscopes, which can determine the tilt. The sensor can be easily controlled and read out via the I2C bus. The sensor is perfect for building a motion control or regulating something in position (balancing robot).

You can find a suitable Arduino library on GitHub:
https://github.com/jrowberg/i2cdevlib/tree/master/Arduino/MPU6050

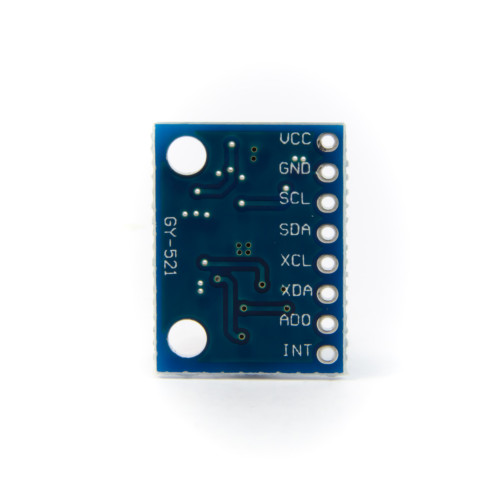

Connections:

Downloads:

• MPU6050_Datasheet.pdf

Technical Details:

• Chip: MPU-6050

• Operating voltage: 3.3V to 5V

• 16-bit AD converter

• Acceleration sensor range: ±2, ±4, ±8, ±16g

• Gyroscope range: ± 250, 500, 1000, 2000 °/s

• Mounting holes diameter: 3mm

• I2C address: AD0 LOW =0x68 / AD0 HIGH =0x69

• Size: 21x16x3mm

• Weight: 2g


Delivery Content:

• 1x MPU-6050 3-axis acceleration sensor with gyroscope

• 1x 8-pin straight pin header

• 1x 8-pin bent pin header
