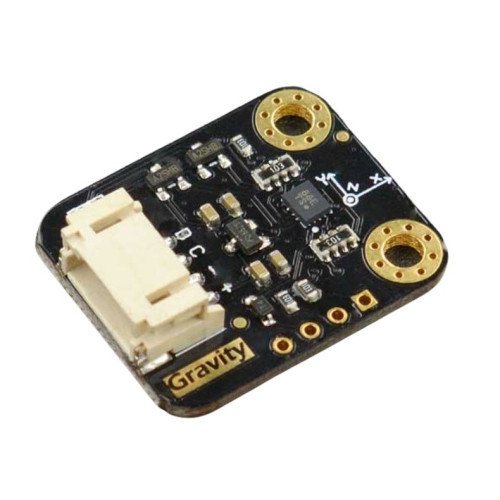

Gravity I2C BMI160 6-Axis Motion Sensor with Gyroscope

This 6-axis motion sensor features a 3-axis accelerometer and a 3-axis gyroscope. The motion sensor BMI160 is based on the Bosch BMI160 6-axis MEMS sensor, which combines a 16-bit 3-axis accelerometer with a low-power 3-axis gyroscope. The Bosch BMI160 is designed for smartphones, tablets and wearable devices. It has built-in intelligent step counting algorithms that can be read directly through registers. The built-in 3-axis accelerometer and 3-axis gyroscope can recognize running, fitness and other movements. The integrated LDO power management chip supports a wide operating voltage of 3.2 to 6V and also has an I2C level converter / level shifter. This means you can operate the sensor with 3.3V and 5V microcontrollers such as Arduino, ESP32, or ESP8266.

Note: You can reverse the polarity of the connection cable by attaching a Dupont cable M-M 10cm to male. This way, you can also easily use it on an Arduino UNO.

Features of BMI160:

• Step count
• Acceleration detection
• Inclination measurement
• Switching horizontal / vertical mode

Documentation:

• DFRobot Wiki
• Diagram
• BMI160 Data Sheet

Technical Details:

• Operating Voltage: 3.2V to 6V
• Power Consumption: <1mA
• Interface: Gravity I2C
• Acceleration range: ±2g/±4g/±8g/±16g
• Gyroscopes Range: ±125°/s,±250°/s,±500°/s,±1000°/s,±2000°/s,±2000°/s
• Zero-g Offset of acceleration: ±40mg
• Gyroscopes Zero Offset: ±10°/s
• Programmable Frequency: 25/32Hz to 1600Hz
• 6D Recognition and Localization
• 16-Bit Data Output
• 2 Independent Programmable Interrupts
• Integrated 1024Byte FIFO
• Operating Temperature: -40°C to +85°C
• Dimensions: 22 X 27mm
• Weight: 13g

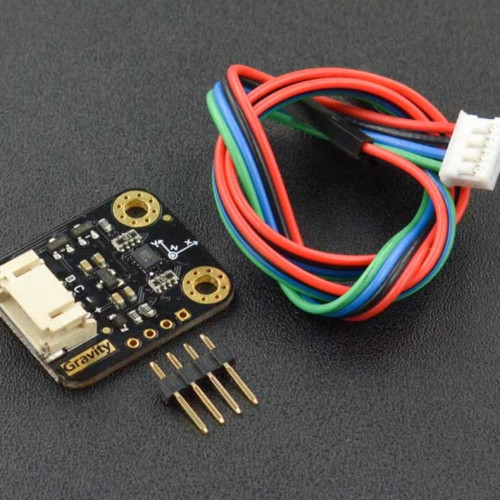

Package Includes:

• 1x Gravity I2C BMI160 6-Axis Motion Sensor with Gyroscope
• 1x Gravity IIC/UART Sensor Cable
• 1x Pin Header 1x4Pin
