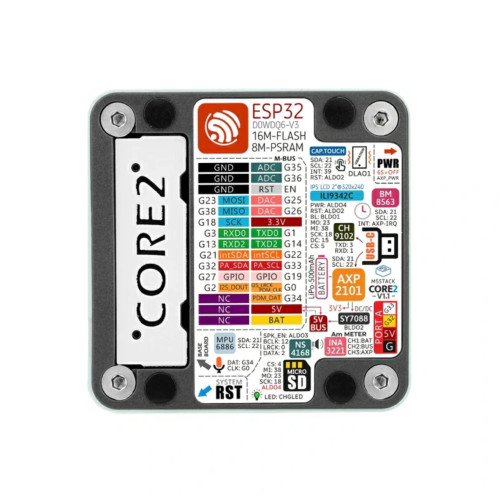

M5Stack Core2 V1.1 ESP32 IoT Development Kit

The M5Stack Core2 V1.1 ESP32 IoT Development Kit is an evolution of the classic Core design, equipped with a more powerful Power IC. This user-friendly development board features the ESP32-D0WDQ6-V3 and has two independent 32-bit LX6 processors with a clock frequency of up to 240MHz. It supports WiFi and comes with 16MB Flash and 8MB PSRAM on board. Programs can conveniently be downloaded via the TYPE-C interface. The robust configuration meets the requirements of complex applications. The Core2 V1.1 features a 2.0-inch integrated capacitive touchscreen. The three points on the front of the screen are part of the touchscreen and can be used as virtual buttons for various human-machine interactions through programming. In addition, the Core2 V1.1 is equipped with a vibration motor for haptic feedback and vibration alarms. The board includes an integrated RTC module and a dedicated battery for the RTC power supply, providing accurate time functionality. The AXP2101 power management chip effectively controls the device's power consumption. The Core2 V1.1 also features a built-in blue power indicator light, a MicroSD card slot, a speaker and a high-quality I2S digital audio interface power amplifier chip. The expansion board on the back integrates a 6-axis IMU sensor and a microphone, offering additional functionalities and possibilities.

Features:

Power supply 5V DC or via the USB Type-C port
Based on ESP32, with built-in Wi-Fi
16M Flash, 8M PSRAM
Integrated speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touchscreen, power and reset button
TF card slot (max. 16G)
Built-in lithium battery with power management chip
Independent small board with 6-axis IMU, PDM microphone
M-Bus socket & pins
Compatible with multiple development platforms: UIFlow, MicroPython, Arduino, .NET nanoFramework Operating system (RTOS): Zephyr
