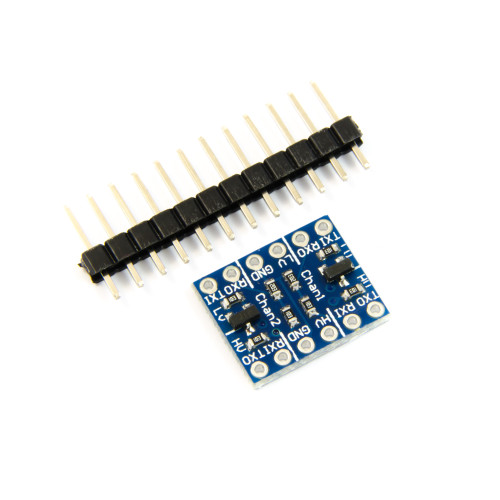

Logic Level Converter 2-Channel 5V / 3.3V

With this module, you can connect controllers with different logic voltages. For example, the Raspberry Pi operates at 3.3V and the Arduino Uno at 5V. If you want to connect these devices via the SPI, you can use this converter module. The board has 2 channels. It can be easily used on breadboards and works with all protocols (SPI, serial, I2C,...) and digital signals. Analog signals are not supported by this board.

Documentation:

• Sparkfun Guide

Technical Details:

• Size: 15.5 x 13 x 2.6mm

• Weight: 2g


Package Contents:

• 1x Logic Level Converter 2-Channel
• 1x Pin Header 12-pin
