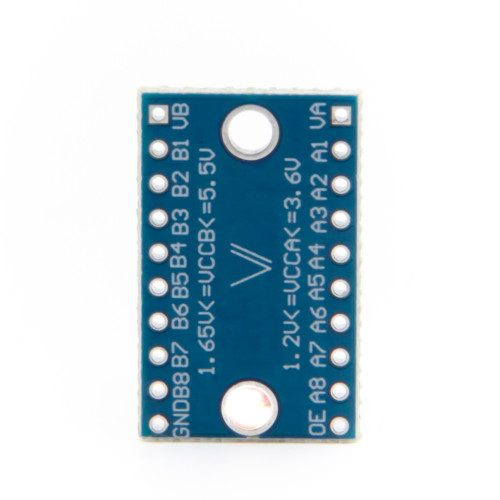

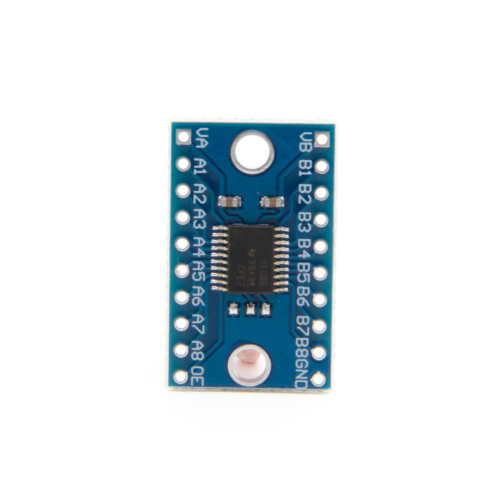

8-Channel Logic Level Converter TXS0108E
With this module, you can connect controllers with different logic voltages. For example, the Raspberry Pi operates at 3.3V and the Arduino Uno at 5V. If you want to connect these devices via SPI, you can use this converter module. The board has 8 channels. It can be easily used on breadboards and works with all protocols (SPI, Serial, I2C,...) and digital signals. Analog signals are not supported on this board.
Technical Details:
- Chip: TXS0108E
- Maximum baud rate: 110Mbps
- Supply voltage VA:1.2V to 3.6V
- Supply voltage VB: 1.65V to 5.5V
- Dimension: 26 x 16 x 3mm
- Weight: 3.5g
Package Includes:
- 1x 8-Channel Logic Level Converter TXS0108E
- 1x Pin Header Set
8-Channel Logic Level Converter TXS0108E
- Brand: purecrea
- Product Code: 421426
- Availability: In Stock
-
CHF4,90
- Ex Tax: CHF4,53
