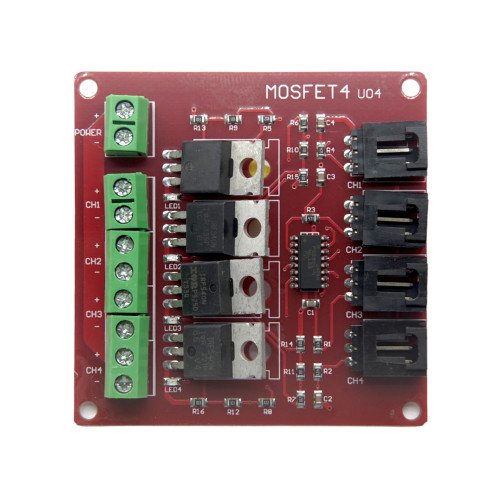

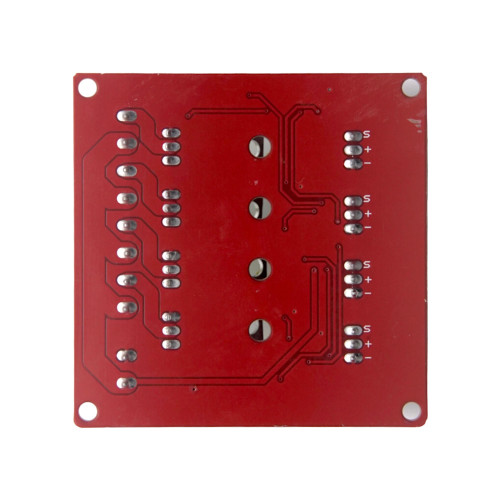

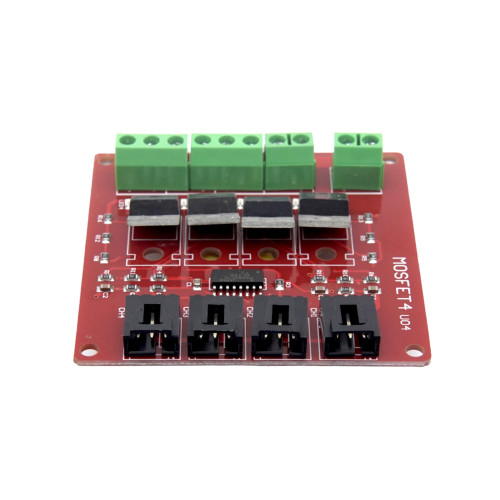

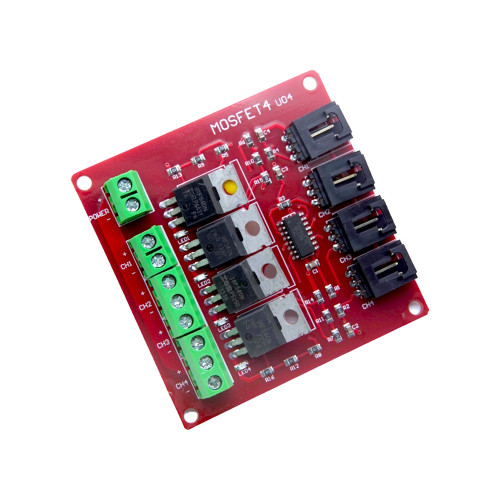

IRF540 MOSFET 4 Channel Driver Module

With the IRF540 MOSFET 4 Channel Driver Module, you can take your electronics projects to the next level. This module is ideal for use with microcontrollers like Arduino and allows you to switch high loads with just a small control signal. Each of the four channels is equipped with a powerful IRF540 MOSFET that can switch high currents and voltages without generating excessive heat. The module is easy to integrate and offers a reliable switching solution for various applications, be it in robotics, LED controls, or industrial control systems. The galvanic isolation of the control and load side ensures high operational safety. In addition, the module is compact and can be easily integrated into existing systems. It is suitable for both projects that require a quick response and those where high load capacity is important.

Features:

• The module features four independent channels, each equipped with an IRF540 MOSFET.
• Each MOSFET can switch high currents and voltages, making it ideal for use in high-power applications.
• The module is compact and easy to integrate into existing systems, making it a versatile solution for various projects.
• Simple control via a microcontroller signal enables seamless implementation in your projects.

Application Examples:

• Control high-power motors in your robotics projects.
• Use the module to switch LED strips in complex lighting systems.
• Use it to safely control electric heaters or other high-current applications.
• Implement it in industrial control systems to efficiently switch loads.
• Use the module for controlling solar systems or other renewable energy sources.

Technical Specifications:

• Manufacturer: purecrea
• MOSFET Type: IRF540
• Maximum Current per Channel: 7A without heatsink
• Maximum Voltage per Channel: 80V (recommended greater than 9V)
• Control Voltage: 5V
• Number of Channels: 4
• Connection: Screw terminal, 3-pin connector
• Dimensions: 66 x 66 x 18mm
• Weight: 33g

Package Includes:

• 1x IRF540 MOSFET 4 Channel Driver Module
