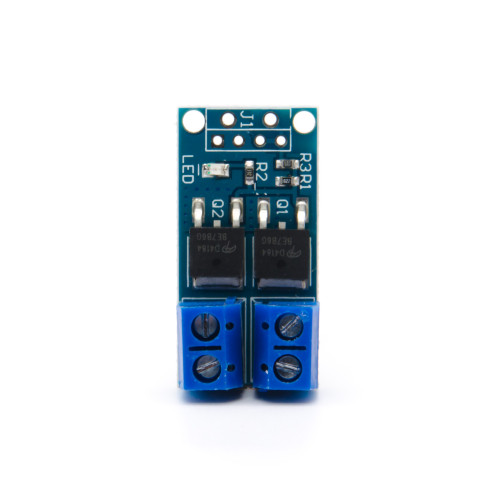

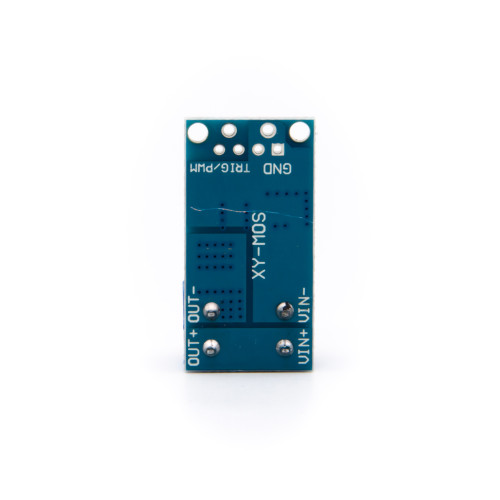

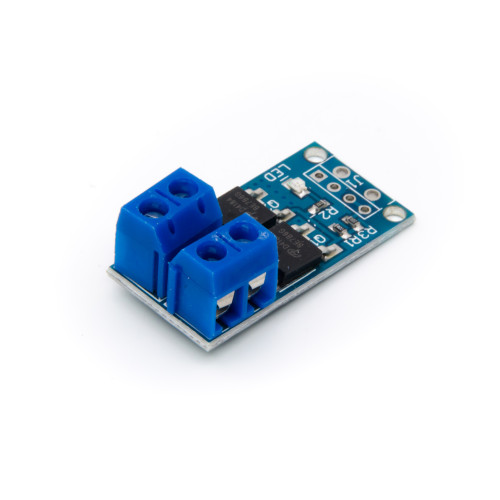

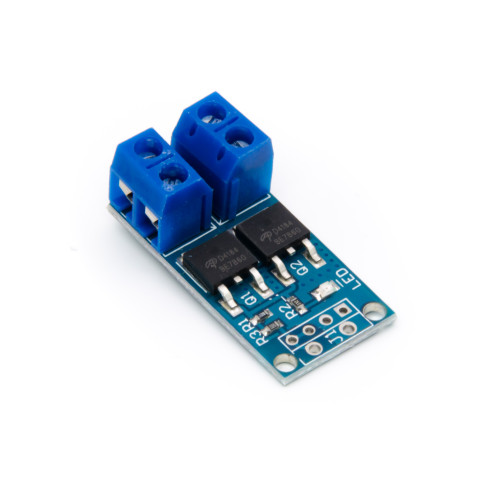

15A 400W MOSFET Driver 5-36V DC
With this high power 15A MOSFET driver module, you can switch larger loads with your Arduino or Raspberry Pi. The driver is perfectly suited for switching DC consumers up to 36V such as LEDs, motors, pumps, fans, solenoid valves, etc. You can also switch the module with PWM, allowing you to dim LEDs or change the speed of DC motors. The module also has a red LED where you can see the switching state of the MOSFET.
Technical Details:
- MOSFET Type: AOD4184
- Control Voltage: 3.3V to 5V
- Output Voltage: 5-36V DC
- Output Current: 15A
- Control Signal: Digital I/O or PWM
- PWM Frequency: 0 Hz to 20 kHz
- Dimensions: 34 x 17 x 13mm
- Weight: 5g
Package includes:
- 1x 15A 400W MOSFET Driver 5-36V DC
15A 400W MOSFET Driver 5-36V DC
- Brand: purecrea
- Product Code: 420985
- Availability: In Stock
-
CHF4,90
- Ex Tax: CHF4,53
