WeMos D1 Mini Micro SD Shield

This WeMos D1 Mini Micro SD Shield can simply be attached to an ESP8266 WeMos D1 Mini. The pins are not yet soldered, so you can solder them according to your needs. The standard Arduino SD card library can be used for reading and writing the SD card. This shield is therefore perfect for implementing a data logger.

If you have any questions or difficulties in controlling, or suggestions about the product description, please feel free to write us an email or use the review function. We are happy to help you.

Used Connections:

• D8 SS (CS Chip Select)

• D7 MOSI

• D6 MISO

• D5 CLK


Technical Details:

• Memory Card Slot: microSD

• Color: Blue

• CS Chip Select Pin: D8

• Dimensions: 28 x 25.5 x 3.6mm

• Weight: 8g


---

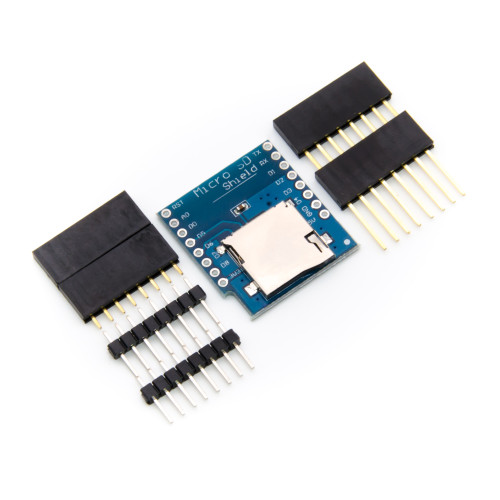

Delivery Contents:

• 1x WeMos D1 Mini Micro SD Shield

• 2x Pin Header Male (8 pins)

• 2x Pin Header Female (8 pins)

• 2x Pin Header Female with long pins (8 pins)
