UNI-T UT196 True RMS Professional Digital Solar Multimeter 1700V

The UNI-T UT196 Professional Digital Solar Multimeter is a robust measuring device for technicians working in rugged environments. The meter was specifically designed for solar/photovoltaic installers. It is capable of measuring up to 1700 V of direct current and 1500 V of alternating current. The solar measuring device offers IP65 protection, is shock-resistant and has a low-pass filter function, a low impedance mode, and a built-in flashlight. It also features comprehensive functionality such as True RMS measurement, automatic range selection, and non-contact voltage testing. The UT196 is CE, UKCA, and cETLus certified and complies with CAT III 1000 V and CAT IV 600 V safety standards.

Features:

• True RMS
• Measurement of up to 1700 V DC and 1500 V AC for high-voltage applications, e.g. solar systems, wind turbines
• IP65 protection rating
• CAT. III 1000V, CAT. IV 600V
• Analog bar
• Frequency response: 45Hz~1kHz
• Low-pass filter function
• Low impedance mode

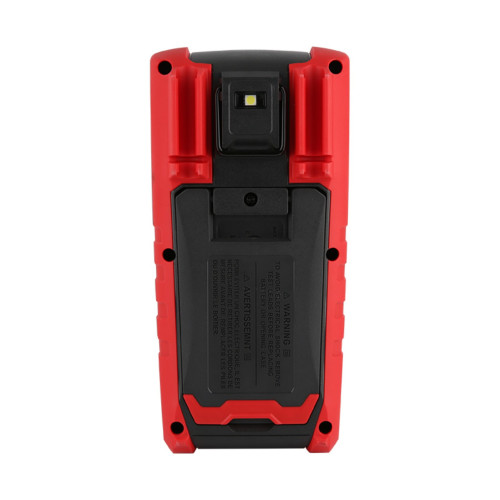

• Built-in flashlight, bright backlight, and visual alarm

Documentation:

• User manual in English
• Manufacturer's website

Technical details:

• Manufacturer: UNI-T
• Manufacturer SKU: UT196
• Direct voltage (V): 0~1700V ± (0.2%＋5)
• Alternating voltage(V): 0~1500V ± (0.8%＋3)
• Frequency (Hz): 0~1MHz ± (0,08%+4)
• Resistance (Ω): 0~60MΩ ± (0,8%＋2)
• Capacitance (F): 0~60mF ± (1,9%+5)
• Number of displays: 6000
• True RMS: Yes
• Dual display: Yes
• Automatic range: Yes
• NCV: Yes
• Diode test: Yes
• Continuity: Yes
• Relative mode: Yes
• Max/Min: Yes
• Peak hold: Yes
• Low-pass filter (LPF): Yes
• Audio and visual indicator: Yes
• Low battery voltage display: ＜7.5V (approx.)
• Data hold: Yes
• Analog bar graph: Yes
• Automatic shutdown: 15 minutes (approx.)
• Flashlight: Yes
• IP protection class: IP65
• Fall test: 2m
• Safety rating: CAT. III 1000V, CAT. IV 600V
• Power supply: 9V battery
• Dimensions: 195 x 95 x 58mm
• Weight: 800g

Package includes:

• 1x UNI-T UT196 True RMS Professional Digital Solar Multimeter 1700V
• 1x English manual
• 1x Test leads
• 1x 9V battery
• 1x Carrying case
