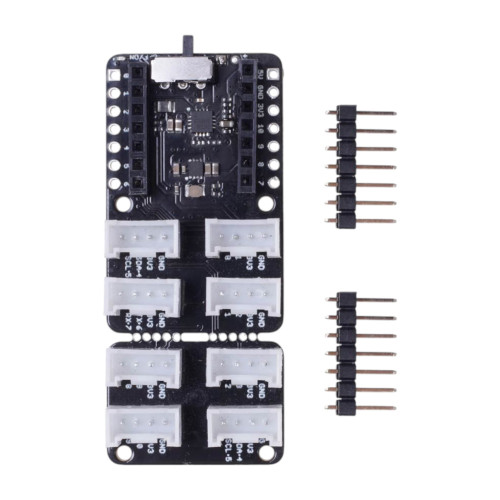

Seeed Studio Grove Base for XIAO

The Seeed Studio Grove Base for XIAO is an expandable Grove board specifically designed for the Seeed Studio XIAO series. With this plug-and-play expansion board, you can effortlessly connect your XIAO module to various Grove modules without additional wiring or soldering effort. Thanks to the integrated battery management chip, you can connect a 3.7V lithium battery and charge it directly. This makes the shield ideal for mobile and portable projects. Additionally, it features eight Grove connectors, including two I2C and one UART interface, allowing you to easily integrate a variety of sensors and actuators. The compact and modular breakout design allows you to divide the board into a smaller version if needed to save space. A SPI flash bonding pad is also available to expand your XIAO module's memory. With the onboard power switch and charge status LED, you have full control over power consumption. This versatile Grove expansion provides a powerful and flexible solution to optimally expand your XIAO board and use it for various electronic projects.

Recommended Accessories:

XIAO Microcontroller

Features:

Integrated battery management function that charges and manages a 3.7V lithium battery.
Eight Grove connectors, including two I2C and one UART interface, for easy sensor and module expansions.
Compact design with modular separation, allowing the board to be reduced to just 25 x 39 mm and weight from 13g to 10g.
SPI flash bonding pad, offering the possibility to add additional flash memory for extended applications.
Onboard power switch for easy power control to manage energy consumption.
Charge status LED indicates the current charging progress.
All 14 GPIO pins of the Seeed Studio XIAO are brought out to ensure maximum flexibility.
Compatible with all Seeed Studio XIAO boards, allowing you to easily combine other expansions.
