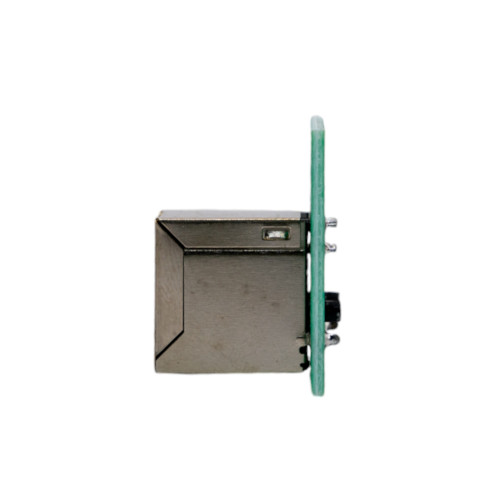

RJ45 Breakout Board vertical 8p

The RJ45 Breakout Board with vertical connections and 8-pin solder point is a practical solution for network technicians and hobbyists who need quick and easy connections to RJ45 Ethernet cables. It allows you to test network signals in a user-friendly manner or create new connections without needing complex tools. This board is specifically designed for simple plug-and-play applications and offers reliable connections with minimal signal loss. The compact, vertical design saves space in your circuit or casing. Thanks to the clearly labeled pins, you can make the correct connection in no time.

Recommended Accessories:

• Ethernet Cable

Features:

• The product offers an 8-pin RJ45 connector suitable for standard Ethernet cables.
• It features a vertical design that saves space in installations.
• The circuit board is made from high-quality materials that ensure long life.
• The board is easy to connect and requires no complex tools.
• It is ideal for prototyping and testing applications in the network area.

Application Examples:

• The Breakout Board can be used in network testing and diagnostics.
• It is suitable for prototyping and experimenting with new network configurations.
• It can be used in DIY projects for wiring Ethernet systems.
• It is a practical solution for temporary network installations.

Technical Data:

• Manufacturer: purecrea
• Socket: RJ45 female
• Connection: 8-pin
• Design: vertical
• Material: plastic/metal
• Mounting holes: 4
• Hole spacing: 11.5 mm / 27.7 mm
• Dimensions: 29 x 35 x 20 mm
• Weight: 9 g

Scope of Delivery:

• 1x RJ45 Breakout Board vertical 8p
