Raspberry Pi 5 Bridge Kit for CrowView Note

The CrowView Note Bridge Kit from Elecrow enables seamless connection between a Raspberry Pi 5 and the CrowView Note Monitor without separate cables. The adapter board replaces the otherwise necessary HDMI, USB, and power cables with a compact plug connection that is directly inserted into the side of the CrowView Note. The Raspberry Pi 5 is simply plugged onto the board and receives both power and data connection via the integrated USB-C port. The Bridge Kit turns the CrowView Note and a Raspberry Pi 5 into a portable laptop solution without cable clutter.

Recommended Accessories:

• Raspberry Pi 5 / 4 GB
• Raspberry Pi 5 / 8 GB

Features:

• Wireless connection replaces separate HDMI, USB, and power cables with a compact plug connection
• Plug-and-Play installation requires no driver installation and is ready to use immediately
• Integrated power supply provides power to the Raspberry Pi 5 via the USB-C port of the CrowView Note
• Compact design blends seamlessly into the design of the CrowView Note
• Stable connection ensures reliable operation even during mobile use
• Quick change allows easy removal and reinsertion of the Raspberry Pi

Application Examples:

• Mobile development station for Raspberry Pi projects on the go
• Portable workstation for makers and hobbyists in the makerspace
• Educational environment for programming courses and STEM lessons
• Compact presentation solution for Raspberry Pi-based demos
• Field testing and debugging of Raspberry Pi applications on-site

Documentation:

• Elecrow Wiki – CrowView Note

Technical Specifications:

• Manufacturer: Elecrow
• Manufacturer SKU: CRV12414
• Compatibility: Raspberry Pi 5
• Video Port: Micro-HDMI
• Power Port: USB-C (5 V from CrowView Note)
• Data Port: USB-A (keyboard/touchpad)
• Installation: Plug and Play, no drivers required
• Package Dimensions: 178 × 130 × 17 mm
• Gross Weight: 45 g

Scope of Delivery:

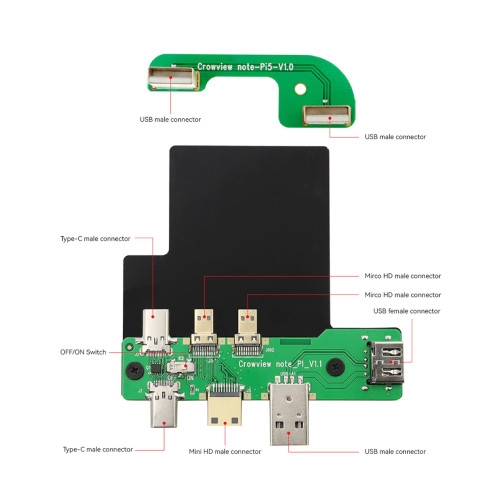

• 1× Bridge Board A (main board with Micro-HDMI and USB-C)
• 1× Bridge Board B (USB-A adapter)
