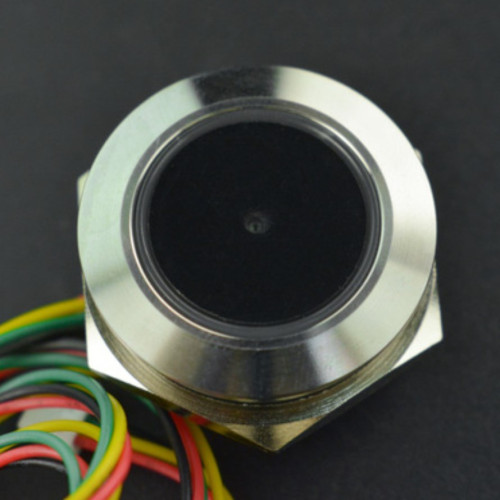

Gravity Ring 2D QR Code Scanner GM60

This is a 2D QR Code Scanner module from DFRobot. The scanner is encased in a robust metal housing, which has an external M25 thread. The scanner is excellently suited for outdoor use as it is also protected against splashing water. The scanner can be comfortably installed in a housing for example. The QR code scanner identifies traditional 1D and 2D codes and can communicate via UART and I2C. It is compatible with 3.3V or 5V, so you can operate it with all popular microcontrollers like Arduino, Raspberry Pi, ESP32, etc.

Features:

• Detects 1D and 2D codes

• Robust metal housing with M25 thread

• RGB ring lighting

• 3.3V or 5V compatible

• UART and I2C interface

Documentation:

• DFRobot Wiki

• User Manual

Technical Details:

• Manufacturer: DFRobot

• Manufacturer SKU: SEN0486

• Voltage: 3.3V/5V DC

• Current: 70mA

• Interface: UART, I2C

• Pixel: 640x480

• Contrast: >25%

• Working temperature: -20°C to 60°C

• Ambient light: 0-100000 Lux

• Thread: M25

• Dimensions: Ø25x15mm

• Weight: 39g

Package Includes:

• 1x Gravity Ring 2D QR Code Scanner GM60

• 1x Adapter Board

• 1x 4pin Dupont cable 25cm
