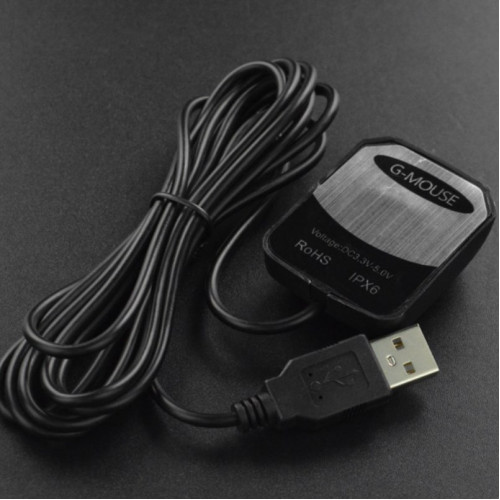

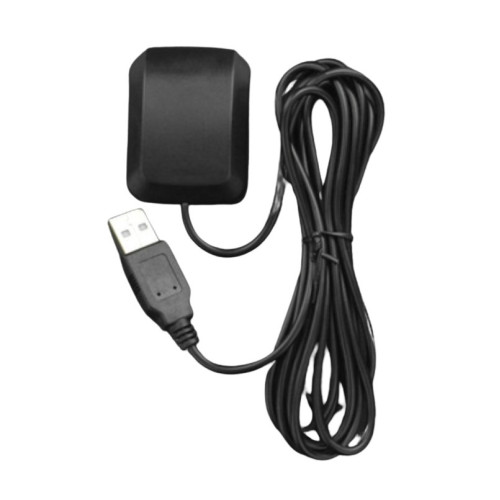

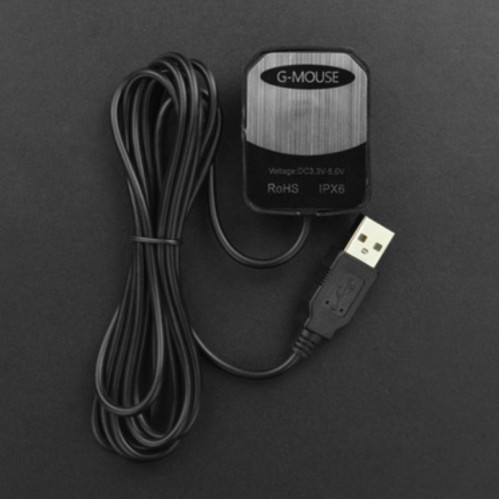

GPS receiver with 2m USB cable

This is a Ublox chip UBX-G7020 based GPS receiver module with low power consumption and high sensitivity, capable of receiving 56 channels of satellite signals. Compared to traditional GPS receivers, it offers much more accurate and faster positioning performance with stronger signals. This product is equipped with a built-in receiving antenna and features a high-precision positioning chip. The GPS receiver is equipped with a battery that provides power for storing satellite data such as satellite signal status, final position, and time, significantly increasing the positioning speed at the next start of the module. Additionally, the receiver has a USB interface, conveniently used in main controllers like Raspberry Pi, NVIDIA, LattePanda. The module has a 2m long USB cable, and its bottom is magnetic, making it easy to attach to metal objects. It is suitable for vehicle navigation, handheld positioning, portable devices, and other fields.

Documentation:

• DFRobot Wiki

Technical Details

• Chip: UBX-G7020-KT

• Voltage: 3.3-5V DC

• Frequency: L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ

• Baud Rate: 4800,9600,19200,38400,57600,115200bps

• Tolerance: horizontal position tolerance <2.5m, SBAS <2.0m time tolerance 30ns

• Updaterate: 1Hz

• Average Time to Location: 29s Cold Start, 3s Warm Start, 1s Hot Start

• Dimension: 38 x 49 x 16mm

• Weight: 64g

Package Includes:

• 1x GPS Receiver with 2m USB Cable
