PCIe to 4-CH PCIe Expansion HAT for Raspberry Pi 5

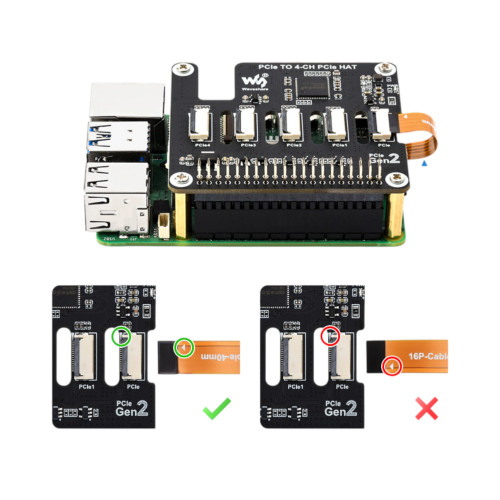

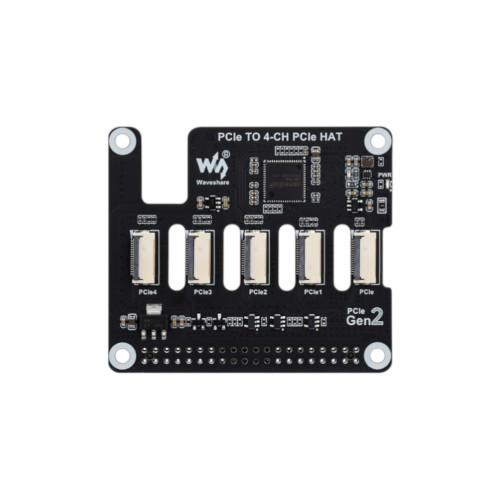

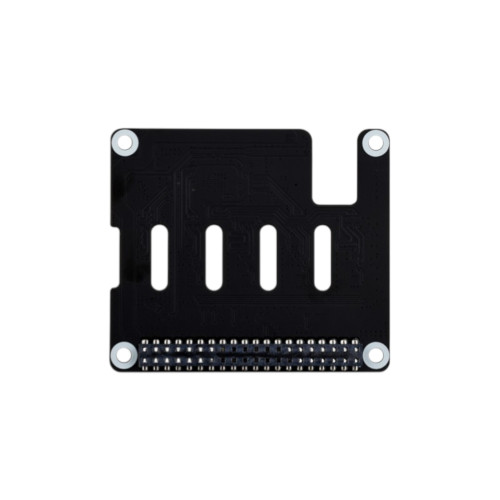

The Waveshare PCIe TO 4-CH PCIe HAT expands the single PCIe interface of the Raspberry Pi 5 to four independent PCIe FFC connectors. The expansion is based on the ASMedia ASM1184e PCIe packet switch chip, which splits one upstream port into four downstream ports in the PCIe Gen2 x1 standard. The board connects to the PCIe port of the Raspberry Pi 5 via a 16-pin FFC cable and is mounted directly onto the Pi in the HAT format. The package includes a heatsink for the PCIe switch and ten FFC cables in two lengths, allowing flexible setups with stacked HATs.

Recommended Accessories:

• PCIe Boards and Accessories

Features:

• ASM1184e PCIe switch expands one PCIe lane to four independent channels
• Power monitoring via I2C enables real-time monitoring of voltage and power
• EEPROM memory stores configuration data for the HAT standard
• Heatsink included ensures reliable operation of the PCIe switch chip
• Ten FFC cables in two lengths allow flexible and stacked setups
• Driverless installation on Raspberry Pi OS and Ubuntu for immediate readiness

Application Examples:

• Multi-SSD systems with four NVMe drives for RAID or storage expansion
• Combination of various PCIe HATs such as network and storage expansions
• Embedded systems with multiple high-speed peripherals
• Development environments for testing various PCIe expansions
• Media servers with multiple fast storage media

Documentation:

• Waveshare Wiki – PCIe TO 4-Ch PCIe HAT

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 31527
• EAN: 0792649735268
• Compatibility: Raspberry Pi 5
• PCIe Standard: PCIe Gen2 (PCIe 2.0)
• PCIe Switch: ASMedia ASM1184e
• Upstream Port: 1× PCIe Gen2 x1
• Downstream Ports: 4× PCIe Gen2 x1
• Connection to Pi: 16-Pin FFC Cable
• PCIe Outputs: 4× 16-Pin FFC Connectors
• Power Monitoring: Onboard via I2C
• EEPROM: Onboard for HAT Configuration
• GPIO Header: 2×20 Pin (pass-through)
• Form Factor: Raspberry Pi HAT
• Operating System: Raspberry Pi OS, Ubuntu, OpenWRT
• Product Weight: 36 g
• Package Dimensions: 130 × 92 × 12 mm
• Gross Weight: 43 g

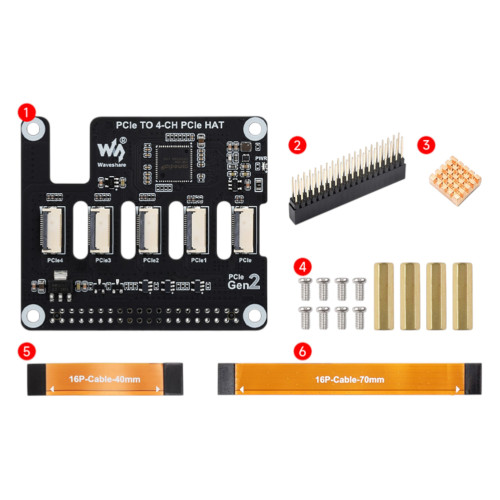

Package Contents:

• 1× PCIe to 4-CH PCIe Expansion HAT for Raspberry Pi 5
• 1× 2×20 Pin Header
• 1× Heatsink
• 1× Screw Set
• 5× 16-Pin FFC Cable 40 mm
• 5× 16-Pin FFC Cable 70 mm
