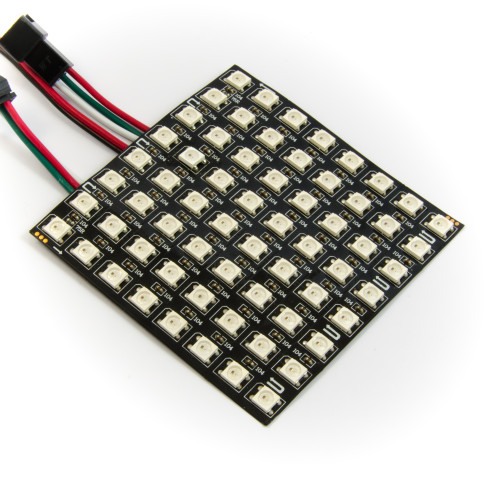

NeoPixel FlexMatrix 8x8 - 64 WS2812B RGB LED

This NeoPixel RGB LED Matrix features 64 small RGB LEDs (4.9x4.9mm). The LEDs are already mounted on a flexible PCB board. Multiple NeoPixels can be connected sequentially and each LED can easily be controlled via a microcontroller, e.g. Arduino UNO, Mega, Nano, etc., through a single output. There are also many programming examples, just search for NeoPixel or Fastled. We recommend connecting an additional 3300 µF capacitor between GND and 5V to guarantee a stable voltage supply and thus prolong the life of the LEDs.

 Info: If you want to operate the WS2812B Matrix with a 3.3V microcontroller like the ESP8266 or ESP32, you will need a "Logic Level Converter".

Arduino Libraries:

• FastLED: https://github.com/FastLED/FastLED
• Adafruit NeoPixel: https://github.com/adafruit/Adafruit_NeoPixel
• WS2812FX ESP8266 Library with finished animations: https://github.com/kitesurfer1404/WS2812FX
• NeoPixelBus ESP8266 Library: https://github.com/Makuna/NeoPixelBus

Downloads:

• WS2812 Datasheet

Connections:

• DIN / DOUT
• 5 VDC
• GND

Technical Details:

• Operating voltage: 5 V DC

• Current consumption: 20mA per color and LED (max = 20mA*3*64=3840mA)

• Driver chip: 64x WS2812B

• LED: 5050 RGB

• Color: White / Black

• Size: 80 x 80 x 4mm

• Weight: 19g


---

Scope of delivery:

• 1x NeoPixel FlexMatrix 8x8 - 64 WS2812B RGB LED
