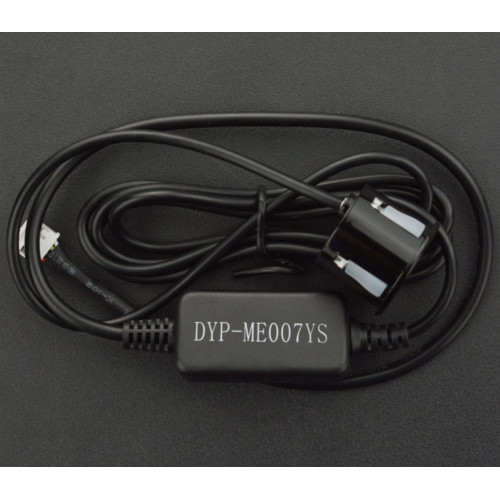

ME007YS Waterproof Ultrasonic Sensor

This is a waterproof ultrasonic distance sensor from DFRobot. The sensor measures the distance to an object based on the time it takes for an emitted ultrasonic pulse to travel from the transmitter to the object and back to the receiver. In this sensor, the complete electronics are waterproof integrated and can be easily connected to your microcontroller via the UART interface.

Documentation:

• DFRobot Wiki

Technical Details

• Manufacturer: DFRobot

• Manufacturer SKU: SEN0312

• Model: ME007YS

• Operating Voltage: 5V

• Current: 8mA

• Range: 28-450cm

• IP Rating: IP67

• Interface: UART

• Frequency: 40kHz

• Operating Temperature: -15°C to 60°C

• Operating Humidity: <80%

• Sensor Dimensions: Ø25 x 18.8mm

• Cable Length: 1.35 cm

• Weight: 44g

Scope of Delivery:

• 1x ME007YS Waterproof Ultrasonic Sensor

• 1x 30cm Gravity 3pin digital cable Dupont XH2.54
