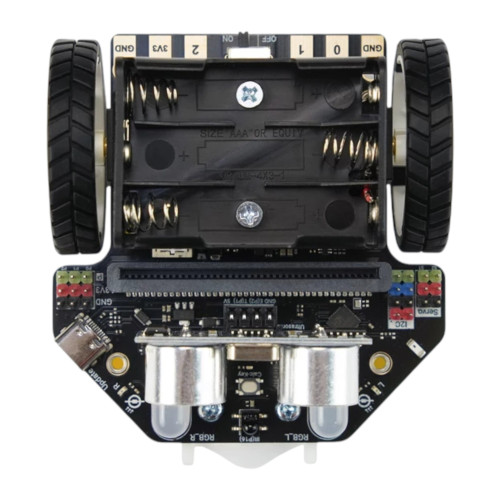

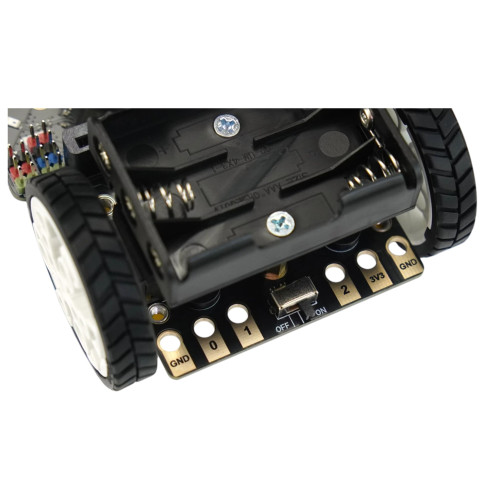

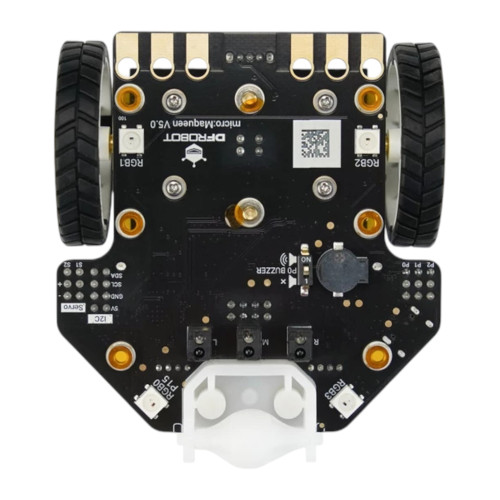

Maqueen Lite V5 micro:bit Educational Programming Robot Kit

The DFRobot Maqueen Lite V5 is a robust and ready-to-use learning robot for teaching programming, robotics, and STEM. The compact vehicle is fully compatible with micro:bit boards and is ideal for children aged 8 and up. The new V5 version offers improved line tracking, more robust motors, multitasking capabilities, and a crash-resistant design. All components are preassembled – unpack, insert batteries, and get started. Thanks to the integrated 3-sensor array and optimized line-following logic, the robot follows black lines precisely without complicated calibration. The algorithm runs directly on the embedded microcontroller, leaving the micro:bit free processing power for other tasks like obstacle detection, light control, or data output. Two metal gear motors, an ultrasonic sensor, light and RGB LEDs, and an IR receiver offer versatile applications. The motors are fully enclosed and easily replaceable if needed – ideal for classrooms with many learners.

Recommended Accessories:

• BBC micro:bit V2
• BBC micro:bit Go V2
• DFRobot HUSKYLENS Easy-to-use AI Vision Camera Sensor
• micro:Maqueen Mechanical Loader
• micro:Maqueen Mechanical Push
• micro:Maqueen Mechanical Gripper
• micro:Maqueen Mechanical Forklift
• 3x AA batteries

Features:

• Pre-assembled micro:bit-compatible robotics kit with instant use
• Optimized 3-probe line tracking with embedded algorithm
• Multitasking capability for simultaneous obstacle and light tracking
• Robust N20 metal motors with replaceable mounting
• Two RGB headlights and four addressable WS2812 RGB LEDs for effects
• Ultrasonic sensor for distance measurement and obstacle detection
• Two light sensors for light tracking or avoidance
• Compatible with MakeCode and micro:bit Python environment

Application Examples:

• Introduction to programming and robotics in schools
• Competition robot for line following and obstacle courses
• Experimental vehicle for sensing and automation
• Lighting and light control projects in STEM lessons

Documentation:

• Dfrobot Wiki

Technical Specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: MBT0046
• Power Supply: 3.5 – 5 V DC
• Batteries: 3 × AA (1.5 V Alkaline or 1.2 V Ni-MH)
• Line Tracking Sensors: 3 (pin headers, on-chip calibration)
• RGB LEDs: 4 × WS2812 + 2 RGB headlights
• Light Sensors: 2 (current range 0 – 1023)
• Ultrasonic Sensor: HC-SR04, measuring range 5 – 300 cm (± 5 cm)
• Motors: 2 × N20 metal motors (removable, 2.54 mm pin header)
• IR receiver and buzzer: integrated
• Expansion ports: 2 × Servo, 2 × I2C, 3 × GPIO
• Compatibility: micro:bit Edge Connector
• Dimension: 91 × 81 × 44 mm
• Weight: 242 g

Package Contents:

• 1 × Maqueen Lite V5 STEM Robot
• 1 × Line Tracking Card
• 1 × Ultrasonic Sensor
