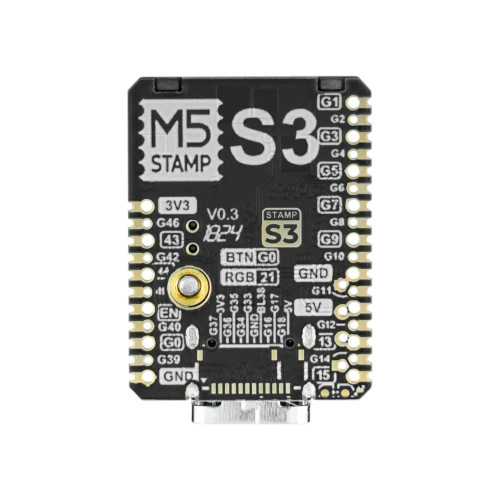

M5StampS3A ESP32S3 Module

The M5StampS3A ESP32S3 module is a highly integrated embedded module based on the Espressif ESP32-S3FN8. It features a 240 MHz Xtensa LX7 dual-core processor and 8 MB flash memory. A programmable RGB LED and a user-friendly button make interaction easy. The optimized 3D antenna design improves wireless communication properties, allowing the module to operate reliably even in environments with high interference. In total, 23 GPIO pins are available, accessible via 1.27 mm or 2.54 mm SMT/DIP pin headers or sockets, enabling easy embedding into boards with limited space. The compact size of only 26 × 18 × 4.7 mm and a weight of around 3 g make it suitable for portable devices and industrial systems. The versatile input/output supports SMT, DIP, flat cable, or unit applications, enabling different casing and development forms. Developers can program the module with UiFlow2, the Arduino IDE, ESP-IDF, or PlatformIO. A supply voltage of 5 V, an energy-efficient dual-core processor, and an improved button design ensure high efficiency. Additionally, the SoC provides interfaces for touch sensors, SD/SDIO/MMC hosts, SPI, SDIO/SPI slave control, EMAC, motor PWM, LED PWM, UART, I²C, I²S, and counter inputs, allowing for the connection of extensive peripheral devices.

Recommended Accessories:

• M5StampS3 GroveBreakOut

Features:

• The ESP32-S3FN8 SoC provides 2.4 GHz Wi-Fi and a 240 MHz Xtensa LX7 dual-core
• The integrated programmable RGB LED and user button offer visual feedback and user comfort
• 23 GPIO pins with 1.27 mm and 2.54 mm pitch enable flexible SMT, DIP, or cable mounting
• A minimalist system board with 8 MB flash is suitable for compact applications
• Supports UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO for programming
• Optimized 3D antenna design ensures strong wireless performance

Application Examples:

• Smart home controls for lighting, security, or energy management
• Smart IoT devices like sensor hubs or gateway systems
• Industrial control terminals and automation solutions
• Portable devices like wearables or fitness trackers
• Compact wireless modules for robotics or model building projects

Documentation:

• Quick Start Guide
• Official M5Stack Forum

Technical Specifications:

• Manufacturer: M5Stack
• Manufacturer SKU: S007-V033
• SoC: ESP32-S3FN8
• Processor: 240 MHz Xtensa LX7 Dual-Core
• Flash: 8 MB
• Power Supply: 5 V DC
• HMI: a programmable physical button and a programmable RGB LED (WS2812B-2020)
• Antenna Type: 2.4 GHz 3D Antenna
• DC-DC Converter: MUN3CAD01-SC
• Interfaces: Touch sensor, SD/SDIO/MMC host, SPI, SDIO/SPI slave, EMAC, motor PWM, LED PWM, UART, I²C, I²S, GPIO, and pulse counter
• GPIO Pins: 23 (G0 – G15 and G39 – G46)
• I/O Pitch: 1.27 mm and 2.54 mm
• LCD FPC Pitch: 0.5 mm at 12 or 8 pins
• Operating Temperature: 0 – 40 °C
• Product Size: 26 × 18 × 4.7 mm
• Weight: 7 g

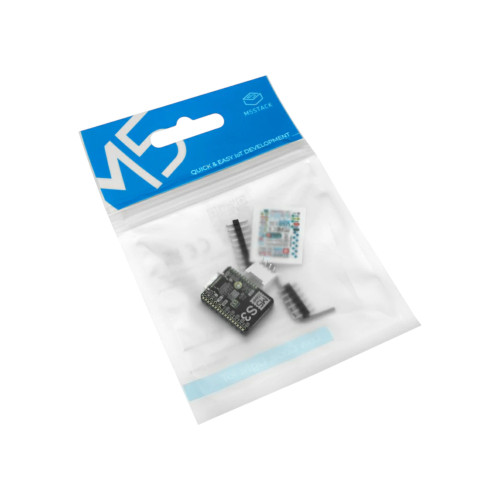

Package Contents:

• 1 × Stamp-S3A Module
• 1 × HY2.0-4P Terminal
• 1 × 2.54-9-Pin Male Header
• 1 × 2.54-6-Pin Male Header
• 1 × Hex Key L-Form 1.5 mm (for M2 screws)
• 1 × Pin Sticker
