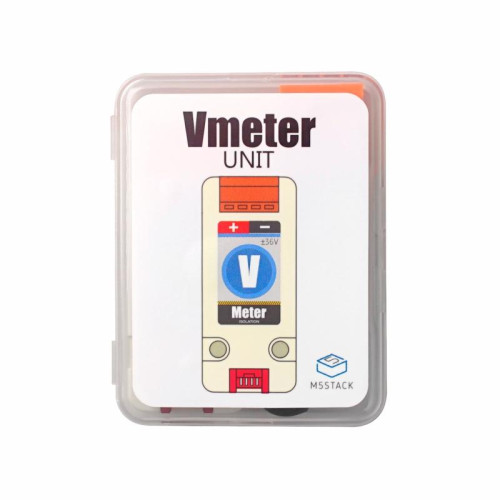

M5Stack Voltmeter Unit Voltage Meter ADS1115

The M5Stack Voltmeter Unit is a voltage meter that can measure up to ±36V.  To ensure measurement accuracy, an isolated CA-IS3020S DC-DC power supply is built in. The 16-bit ADS1115 analog-digital converter can be used for communication via the I2C protocol (the standard I2C address is 0X48, unless manually changed). The I2C interface is also electrically isolated by the CA-IS3020S low power isolation module. Each device is calibrated at the factory with an initial accuracy of 0.1%FS, ±1 count

WARNING: Calibration data and parameters are stored on the EEPROM memory. Make sure you do not overwrite the EEPROM to prevent incorrect readings.

Features:

• ±36V measurement range

• 16bit analog-to-digital conversion

• LED power indicator

• Pre-calibrated

• Easy reading via i2C

• Built-in CA-IS3020S isolation chip

• Supports Arduino and UIFlow

Documentation:

• M5Stack Wiki

Technical Details:

• Manufacturer: M5Stack

• Manufacturer SKU: U087

• Measurement range: ±36V

• Communication protocol: I2C 0x49

• Dimensions: 65 x 24 x 13mm

• Weight: 23.5g

Package includes:

• 1x M5Stack Voltmeter Unit Voltage Meter ADS1115
• 1x 20cm Grove connection cable
