M5Stack Fader Unit with Potentiometer and RGB Lighting

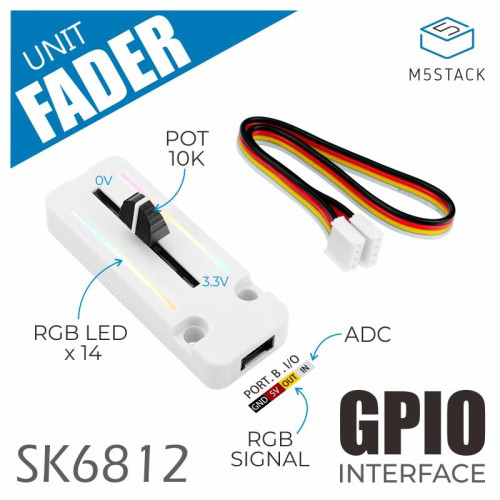

This is a sliding potentiometer with colored RGB lighting. The fader has its own center positioning and excellent sliding devices for stable, reliable performance and precise control. The integrated SK6812 RGB LEDs support digital addressing, which means you can adjust the brightness and color of each LED. The product is suitable for lighting, music control, and other applications.

Documentation:

• M5Stack Forum

• Quickstart Guide

• Arduino Example Code

Technical Details:

• Manufacturer: M5Stack

• Manufacturer SKU: U123

• Slider distance: 35mm

• RGB LED: 14x SK6812

• Individual resistance: 10kOhm

• Current: 90.04mA (at 50% brightness)

• Dimension: 46 x 24 x 10mm

• Weight: 30g

Scope of Delivery:

• 1x M5Stack Fader Unit with potentiometer and RGB lighting

• 1x 20cm HY2.0-4P Cable

• 1x storage box
