M5Stack PWRCAN 13.2 Module CAN/RS485

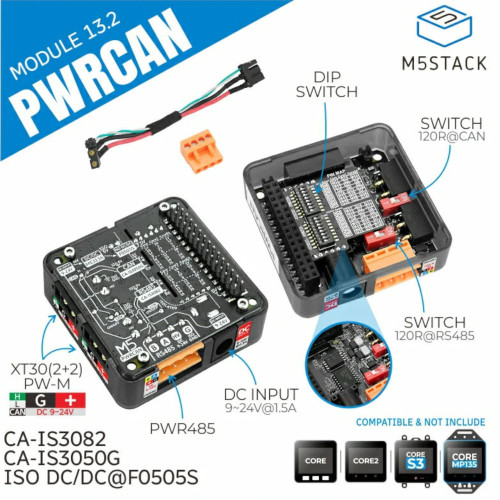

The M5Stack PWRCAN module offers you a comprehensive solution for CAN-Bus and RS485 communication. It is ideal for applications that require stable and isolated data transmission. This module integrates two isolated CAN channels and one RS485 channel, enabling flexible connectivity. The PWRCAN module is specifically designed for industrial applications where robustness and reliability are crucial. Thanks to the isolation between the channels, secure and interference-free communication is ensured. The compact design allows for easy integration into various projects. With the PWRCAN module, you can efficiently connect and control different devices and systems. It is compatible with a variety of M5Stack controllers and expansions. Due to its high voltage tolerance and robust connectors, the module can also be used in harsh environments.

Recommended Accessories:

• M5Stack Core2 V1.1 ESP32 IoT Development Kit
• M5Stack CoreS3 ESP32S3 IoT Development Kit
• M5Stack Basic Core ESP32 IoT Development Kit V2.7
• M5Stack CoreMP135 STM32MP135D Core Development Kit Debian
• M5Stack CoreS3 SE ESP32S3 IoT Development Kit

Features:

• The module features two isolated CAN-Bus channels.
• An RS485 channel is also integrated.
• It is specifically designed for industrial applications.
• The isolation between the channels ensures secure and interference-free communication.
• Its compact design allows for easy integration into various projects.
• It is compatible with a variety of M5Stack controllers and expansions.
• Thanks to its high voltage tolerance and robust connectors, it can also be used in harsh environments.

Application Examples:

• Industrial automation
• Vehicle communication systems
• Monitoring and control of power distribution networks

Documentation:

• M5Stack Wiki
• Official M5Stack

Technical Data:

• Manufacturer: M5Stack
• Manufacturer SKU: M012-A
• Communication Interfaces: CAN-Bus, RS485
• Channels: 2 x CAN-Bus, 1 x RS485
• Supported Protocols: CAN and RS485 bus communication protocols

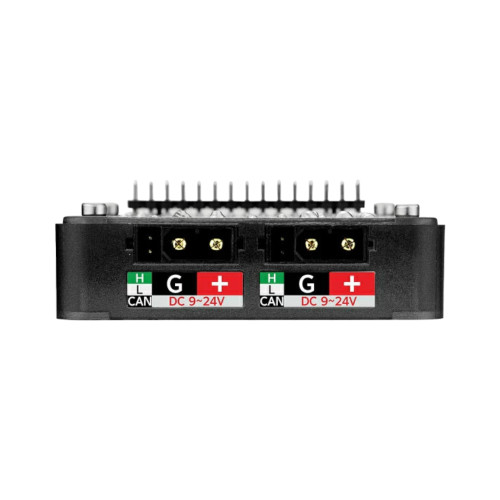

• CAN Interface: XT30(2+2)PW-M horizontal solder pin male
• RS485 Interface: HT3.96-4P
• CAN-Bus Speed: Maximum 1Mbps
• RS485-Bus Speed: Maximum 500Kbps
• Supported CAN Nodes: 110 nodes
• Supported RS485 Nodes: 256 nodes
• Input Voltage Range: 9-24V
• Power Supply: DC Jack 5.5/2.1mm, 485 Interface (HT3.96), CAN Interface (XT30)
• Operating Temperature: 0-40°C
• Dimensions: 54 x 54 x 13mm
• Weight: 51g

Package Contents:

• 1x M5Stack PWRCAN 13.2 Module CAN/RS485
• 1x Connection Cable
