LilyGo TTGO T-Beam ESP32 868MHz LoRaWAN NEO-M8N GPS Board

This is an ESP32-based development board from Lilygo. The board has a Semtech SX1262 LoRa transceiver built in, which allows you to operate the board over long distances. Additionally, the board is equipped with a NEO-M8N GPS receiver. On the back, a 18650 battery compartment is pre-installed to enable autonomous operation.

Recommended Accessories:

• Li-Ion Battery 3.7V 3200mA NCR18650B 18650

Properties:

• EU868MHz LoRaWAN

• GPS, Bluetooth, and WiFI Connectivity

• Pre-installed 18650 battery compartment and AXP192 Battery Management

• SPI Interface

• Power and Reset Buttons

Documentation:

• T-Beam Github

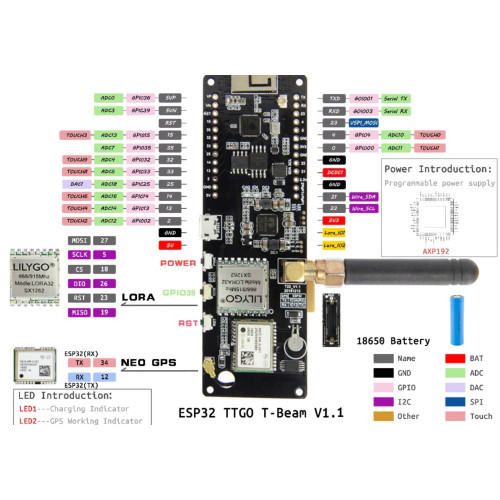

Pinout LilyGo TTGO T-Beam ESP32:

Technical Details:

• Manufacturer: Lilygo

• Manufacturer SKU: Q160

• Version: V1.1

• Input voltage: 5V USB/ 3.7-4.2V Battery

• GPS Module : NEO-M8N

• Battery chip : AXP192

• LoRa Chip: SX1262

• LoRa Frequency: 868MHz

• Transmission: +20dBm

• Reception: -139dBm@LoRa &62.5Khz&SF=12&146bps

• -136dBm@LoRa &125Khz&SF=12&293bps

• -118dBm@LoRa &125Khz&SF=6&9380bps

• -123dBm@FSK&5Khz&1.2Kbps

• Frequency Tolerance: ±15KHz

• FIFO Memory: 64Byte

• Data rate:
• 1.2K~300Kbps@FSK
• 0.018K~37.5Kbps@LoRa    
• Modes: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
• Interface: SPI
• Baud rate: 9600
• Operating temperature: -40°C – 85°C
• Dimensions: 100 x 33 x 20mm
• Weight: 64g

Package includes:

• 1x LilyGo TTGO T-Beam ESP32 868MHz LoRaWAN NEO-M8N GPS Board

• 1x 868Mhz Antenna

• 3x Nut

• 1x IPEX Cable

• 2x 13pin Header
