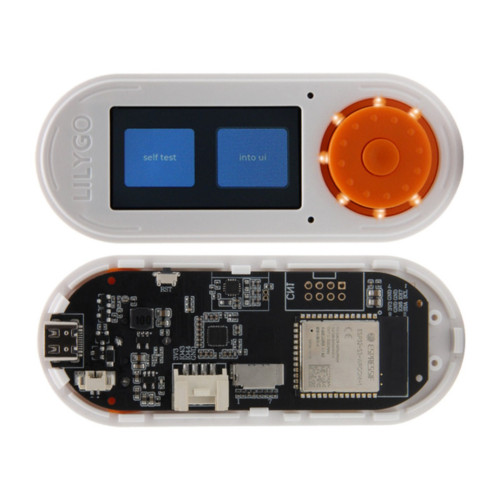

LilyGo T-Embed ESP32-S3 with Encoder and Display

The T-Embed from Lilygo is a development board that uses the ESP32S3 chip and offers a variety of features such as WIFI, BLE, TF, LED and TFT_LCD. It has a built-in 1.9-inch display that allows you to display and control any content with a rotary knob. In addition, a speaker is included that can be easily connected via a JST 1.25 connector. On the GitHub page of the T-Embed you will find the firmware, examples and other important documents. The board is ideal for hobbyists and inventors.

Features:

• Rotary knob with seven RGB LEDs
• Reset and Boot Button
• Mini Speaker

Documentation:

• 3D Printing Housing Files
• GitHub

LilyGo T-Embed Pinout:

Technical Details:

• Manufacturer: Lilygo

• Manufacturer SKU: K199

• MCU: ESP32-S3 Dual-Core LX7 Microprocessor

• ESP32-S3 Wi-Fi: Wi-Fi 802.11 b/g/n

• ESP32-S3 Bluetooth: BLE5

• ESP32-S3 Flash Memory: 16MB

• ESP32-S3 PSRAM: 8MB

• ESP32-S3 Bat Voltage Detection: IO04

• Programming Platform: Arduino-IDE, ESP-IDF

• Display Model: ST7789V IPS TFT LCD

• Display Driver: ST7789

• Display Resolution: 170x320 Pixels

• Display Diagonal: 1.9 Inches

• Display Interface: SPI

• Color: White, Orange

• APA102 RGB Ring: 7x LED

• Connection: JST GH 1.25mm, Grove (IIC, UART), USB type-C, TF-Card Slot, PPIO PINOUT, JST 1.25 (Speaker)

• Microphone: 2

• Dimensions: 96 x 39 x 11mm

• Weight: 70g

Included in Delivery:

• 1x LilyGo T-Embed ESP32-S3 with Encoder and Display

• 1x idc3 Box Header Connector 2.54 (2x8PIN)

• 1x Box Header Cable 2.5 8-pin 10cm

• 1x JST 1.25mm 2PIN

• 1x Speaker 1x1511 (8Ω 1w)
