Solar Lipo Charger with USB 5V 1A V2.3

This is a solar charge controller with a 5V 1A USB output. With a 5V solar panel, you can charge a 3.7V Lipo battery with up to 600mA charging current. If the power from the solar panel is not sufficient, there is also a miniUSB input with which you can also charge your battery. The USB input can also be used to program your consumer. The board has status LEDs that glow red when the battery level is low. Otherwise, a green LED lights up. The integrated CN3065 charge controller has overcharge and discharge protection to extend the life of your battery.

Recommended accessories:

• JST 2.0 Lipo connection cable 15cm with plug
• Li-Ion Battery 3000mA 18650 with protection electronics and plug
• 5V 1A Semi flexible monocrystalline solar module 5W
• Solar cell 5V 200mA 1W 110x60mm
• 5V 1A monocrystalline solar panel 6W with USB connection

Features:

• On/Off slide switch
• Overcharge and discharge protection at 4.2V and 3.7V with ±1% tolerance
• Continuous charging current of 500mA
• Status LEDs

Documentation:

• Wiki

Technical details:

• Power Management Chip: CN3065
• Input voltage: 4.4-6V
• Output voltage: 5V
• Output current: up to 1A
• Battery charging current: 500mA continuous, 600mA peak

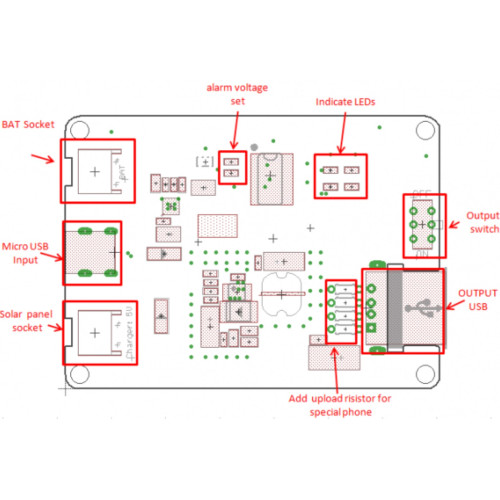

• Connectors: 2x JST 2.0 (BAT and Solar), 1x miniUSB (input), 1x USB-A (output)
• Dimension: 68 x 50 x 7.5mm
• Weight: 16g

Delivery contents:

• 1x Solar Lipo Charger with USB 5V 1A V2.3
