LilyGo T-Camera S3 OV2640 with Case

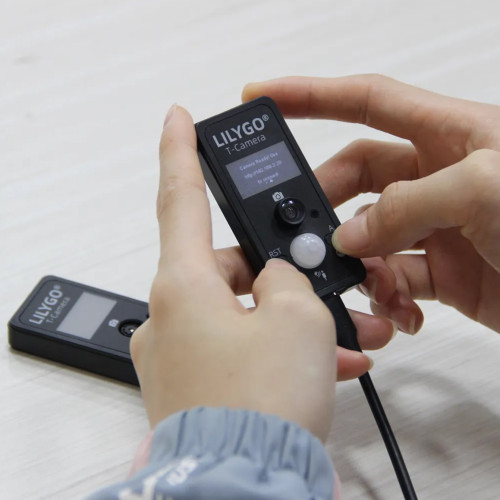

The ESP32-S3 OV2640 T-Camera with housing is a high-quality camera from Lilygo with a resolution of 1622 x 1200 pixels. Besides the camera, there is also a microphone, a PIR motion detector, and an OLED display on the board to simplify the operation. Data can be easily uploaded or downloaded using the USB-C port or the JST 2.0mm 5PIN connection with a microcontroller like Arduino or Raspberry PI.

Features:

• Microphone
• PIR motion detector
• Oled Display

Documentation:

• GitHub

Technical Details:

• Manufacturer: Lilygo
• Manufacturer-SKU: K207
• Chip: ESP32-S3-WROOM-1
• MCU: ESP32-S3-S3FN16R8 Dual-Core Microprocessor
• PSRAM: 8MB
• Flash Memory: 16MB
• Wireless connectivity: Wi-Fi 802.11, BLE 5 + BT Mesh
• Programming platform: Arduino IDE, VS-Code
• Compatible: T-Camera housing
• Onboard: Boot Button, Reset Button, Power Button, PIR (passive infrared sensor), Microphone, PMU, OLED Display
• Connectors: JST-GH 1.25mm (power), JST-PH 2.0mm 5-wire (data), USB-Type-C (data)
• Camera:
• Type: OV2640
• Voltage: 3.3V
• Pixels: 2 million
• Resolution: UXGA 1622 x 1200 pixels
• Display:
• Type: OLED SSD1306
• Interface: I2C
• ISC-PINs: SDA IO07, SCL IO06
• Resolution: 128 x 64 pixels
• Diagonal: 0.96 inches
• Dimensions (without housing): 69 x 28 x 18.5mm

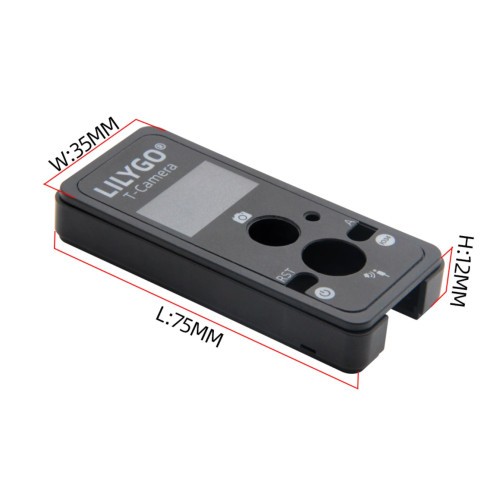

• Dimensions (with housing): 75 x 35 x 12mm
• Weight: 50g

Package Contents:

• 1x LilyGo T-Camera S3 OV2640 with housing
• 1x 4pin headers
• 1x 6pin headers
• 1x JST-GH 1.25mm connection cable
• 1x 2.0mm 5PIN to Dupont 2.54 Female 20cm
