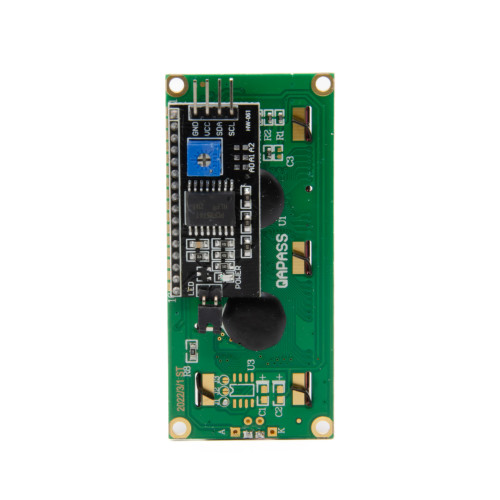

LCD1602 LCD Blue Display with I2C Module

This is a 16x2 blue LCD display with an integrated I2C module. The display can be conveniently operated with a 5V microcontroller via the I2C interface. The display size is 64.5x16mm and can display 16x2 characters. The display is controlled by an HD44780 LCD controller. There is a potentiometer on the I2C module with which you can adjust the contrast of the display.

Info:If you are unsure which I2C address is being used, you can easily find it out with the I2C scanner (link under download).

Features:

• Already integrated I2C module
• Potentiometer for adjusting the contrast
• Background lighting Adjustable via I2C
• 16x2 character LCD display
• HD44780 LCD controller

Download:

• Arduino LiquidCrystal_I2C Library
• Arduino I2C Scanner

Technical Details:

• Voltage: 5V
• Character: 16x2
• Backlight: Blue
• Text color: White
• Interface: I2C
• LCD Controller: HD44780
• I2C Controller: PCF8574
• Display dimension: 64.5 x 16mm
• Module dimension: 80 x 35 x 20mm
• Weight: 37g

Package Includes:

• 1x LCD1602 LCD Display Blue with I2C module
