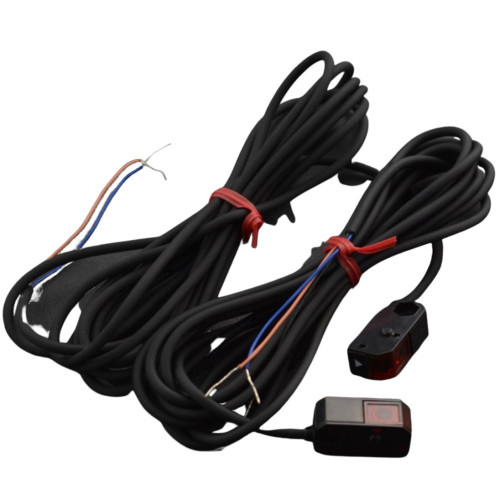

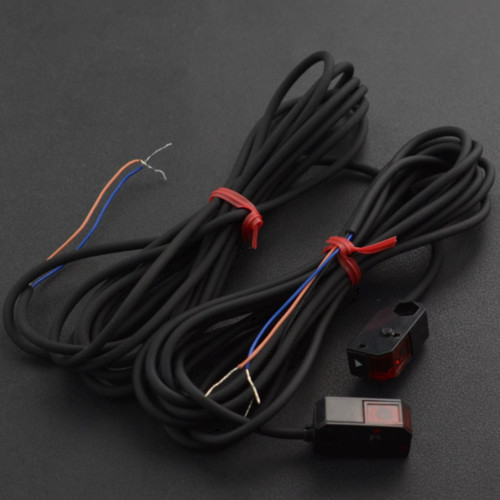

Infrared Light Barrier 1.5m 9-24V

The infrared light barrier has a detection range of up to 1.5 meters and a fast response time of under 1 millisecond. It consists of a transmitter and a receiver and is suitable for temperatures from -20°C to 65°C. The light barrier is used in various industries, including machine automation and the automotive industry, and is also suitable for speed detection and timing in intelligent robot competitions. Due to its independence from weather conditions, it is particularly accurate in measurement.

Caution: To use the sensor with an Arduino, the signal voltage must be reduced to 5V. This can be achieved by a simple voltage divider or an optocoupler.

Recommended Accessories:

• 1-Channel EL817 Optocoupler 12V

Technical Details:

• Manufacturer: DFRobot
• Manufacturer SKU: SEN0347
• Voltage: 9-24V
• Output Form: Three-Wire DC
• Output Type: NPN
• Detection Distance: 150cm
• Output Current: 200mA
• Housing Material: Polymer
• Operating Temperature: -20~65°C
• Operating Frequency: 1000Hz
• Response Time: < 1ms
• Wiring: blue-GND, brown-VCC, black-output signal

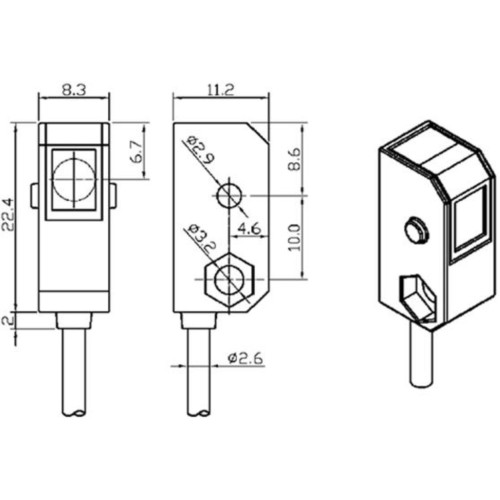

• Dimensions: 22.4 x 11.2 x 8.3mm
• Weight: 48g

Included in Delivery:

• 1x Infrared Light Barrier 1.5m 9-24V
• 1x Mounting Material
