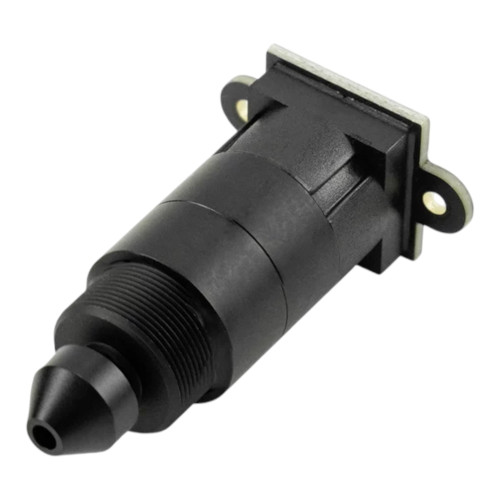

HUSKYLENS 2 30x Microscope Camera Module

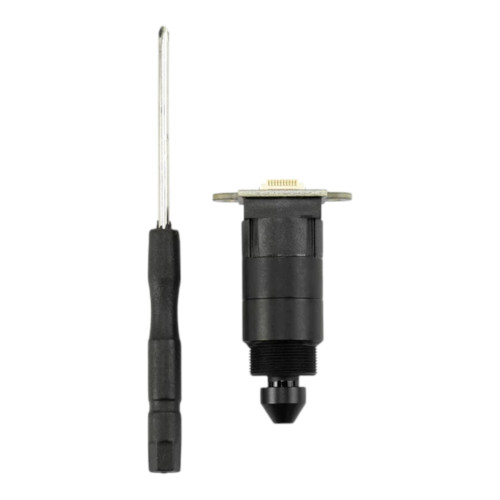

The HUSKYLENS 2 Microscope Camera Module is a special camera module for the HUSKYLENS 2 AI vision sensor. With a focal length of 6mm and the 2-megapixel image sensor GC2093, the module achieves approximately 30x magnification. The minimum resolvable line width is about 3μm, which corresponds to the USAF-1951 test chart Group 7 Element 3. This high resolution enables the observation and identification of microscopic objects such as cells or electronic components. The field of view (FOV) is 6°, while the system resolution reaches approximately 161 lp/mm. Through seamless integration with the HUSKYLENS 2, its AI algorithms such as object recognition, tracking, and classification can also be applied to microscopic targets. Installation is straightforward by directly attaching it to the HUSKYLENS 2 sensor. A small Phillips screwdriver for mounting is included in the set. The module transforms the HUSKYLENS 2 into a compact digital AI microscope for education, research, and quality control.

Recommended Accessories:

HUSKYLENS Module

Features:

30x magnification allows the observation of microscopic details down to 3μm line width
2-megapixel GC2093 image sensor delivers high-resolution images for precise analysis
AI-supported microscopy through seamless integration with HUSKYLENS 2 algorithms
Compact design transforms the HUSKYLENS 2 into a portable digital microscope
Plug-and-play installation without complex calibration or additional software
High system resolution of approx. 161 lp/mm for detailed imaging

Application Examples:

Biology lessons for observation and AI-supported identification of cells
Quality control of SMD components and solder joints in electronics manufacturing
STEM projects for combining microscopy and machine learning
Material analysis and surface inspection in research and development
Automated detection of microorganisms in water samples
