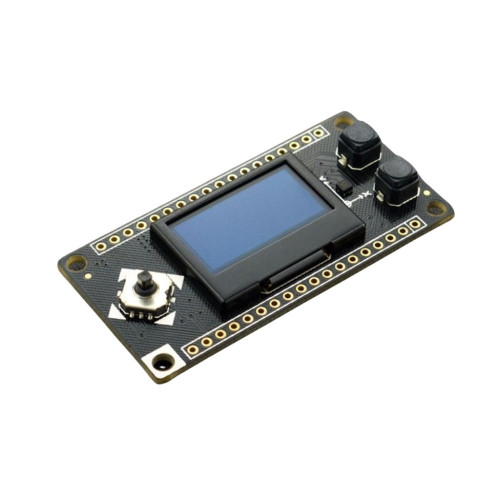

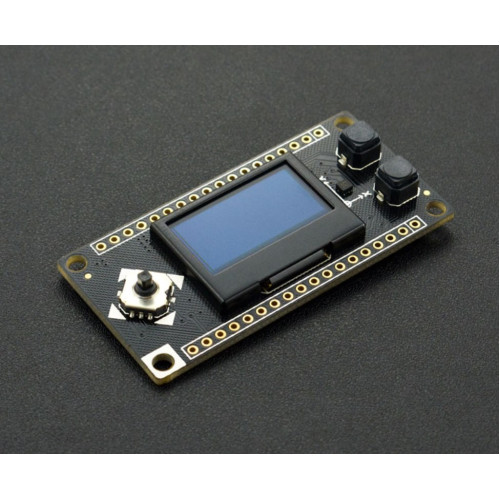

Firebeetle Covers OLED Display 128x64 Blue

This FireBeetle Covers display module is equipped with a 128x64 resolution OLED and the new version of the SSD1360 driver ICs, uses I2C interface, supports the Arduino library and can also be controlled with microPython. The display is compatible with the ""Gravity I2C OLED-2864 Display”. The OLED display has a protective frame to protect the screen. It prevents the edge of the glass from being scratched or damaged. A 5-way joystick and two digital buttons are installed on the board for navigation and control. A BMA220 triaxial accelerometer is also installed on the module. Thus, you can do a lot with this module.

There are three types of FireBeetle: the main control boards, the Covers expansion cards, and the general accessories.

Features:

• Supports multilingual fonts
• Integrated 3-axis accelerometer BMA220
• 5-way joystick perfect for navigation and control
• Two digital pressure buttons
• Easily readable 128x64 OLED display

Documentation:

• DFRobot Wiki
• Schema

Technical Details:

General:

• Operating voltage: 3.7V to 5.5.5V
• 2x push buttons: D3, D8
• 5-way switch joystick: A0
• Weight: 22g
• Dimension: 58 x 29 x 9mm

Triaxial accelerometer BMA220:

• Interface: i2C
• Resolution: 6 Bit
• Measurement ranges: 2/4/8/8/16g
• Current consumption: 250uA

OLED

• Model: UG-2864HLBEG01
• Dimension: 0.96in
• Color: Blue
• Interface: i2C
• Pixel:128x64

Font Chip GT30L24A3W:

• Interface: SPI
• Character set:
• GB18030 Simplified Chinese/Traditional Chinese
• KSC5601 Korean
• JIS0208 Japanese
• 180 foreign fonts
• Support for multinational Unicode
• IS08859 and CODE PAGE
• Chinese font size:12 dot matrix, 16 dot matrix, 24 dot matrix
• Foreign font size:16 point matrix, 24 point matrix
• Operating current: 12mA

Package Includes:

• 1x Firebeetle Covers OLED Display 128x64 Blue
• 2x Pin header 1x18 Pin
• 2x Female connector short pins 1x18 Pin
