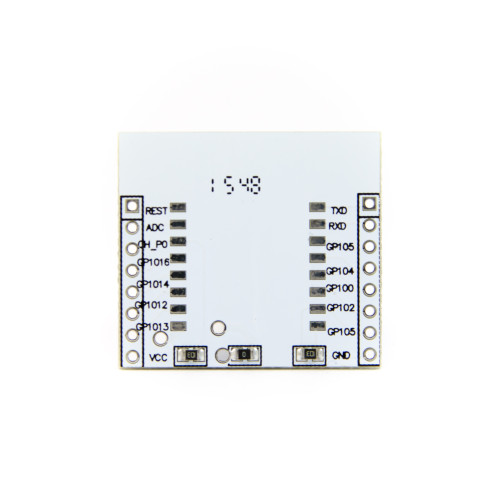

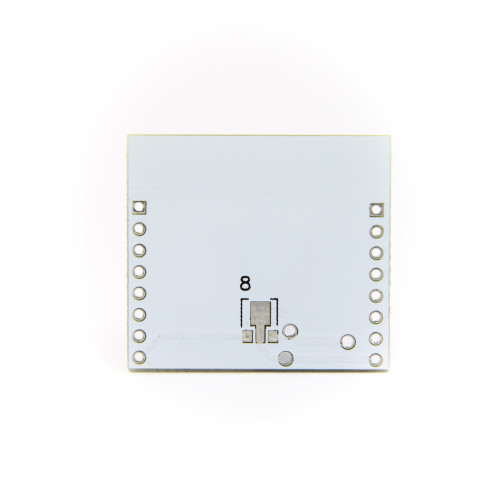

ESP8266 Adapter Module for ESP-07 ESP-08 ESP-12

This versatile adapter module is suitable not only for the ESP-07, but also for the ESP-08 and ESP-12 models. It allows easy soldering of the ESP module and fits perfectly on two breadboards thanks to a standardized grid size of 2.54 mm. For additional flexibility, a 3.3V voltage regulator can be soldered onto the board. This allows the ESP8266 to be powered with a 5V power supply. However, note that the ESP8266 is not standardly 5V compatible and ideally should be powered with 3.3V.

Connections:

• REST

• ADC

• CH_PD

• GPIO16

• GPIO14

• GPIO12

• GPIO13

• GPIO15

• VCC

• TXD

• RXD

• GPIO5

• GPIO4

• GPIO0

• GPIO2

• GND


Technical details:

• Compatible with the types: ESP-07, ESP-08, ESP-12
• Dimensions: 28.3 x 31.8 x 11.3 mm
• Weight: 0.5 g

Package includes:

• 1x Adapter module
• 2x Pin Header (8 Pin)
