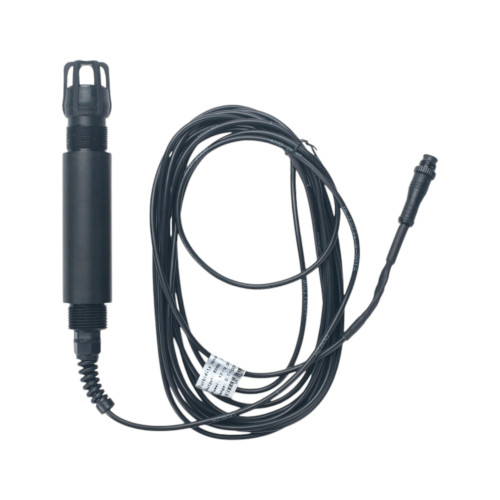

DR-TS1 Water Turbidity Sensor RS485

The DR-TS1 Water Turbidity Sensor is a highly precise sensor for measuring water turbidity and provides reliable and accurate data for various water quality applications. This sensor measures turbidity in the range of 0.1 to 1,000 NTU and is compatible with the WQS-LB and WQS-LS LoRaWAN Water Quality Transmitters. With its robust IP68 construction, the sensor is ideal for use in harsh environments such as wastewater treatment plants, aquaculture, and drinking water systems. The DR-TS1 utilizes the RS485 interface with the Modbus RTU protocol, allowing easy integration into existing monitoring and control systems. Thanks to its high accuracy and ability to deliver stable measurements even under challenging conditions, this sensor is a perfect choice for continuous water monitoring.

Recommended Accessories:

• WQS-LB LoRaWAN Water Quality Transmitter Node 868MHz
• WQS-LS LoRaWAN Water Quality Transmitter Node 868MHz

Features:

• High Precision: Measures turbidity values from 0.1 to 1,000 NTU with a resolution of 0.1 NTU.
• Robust Construction: The sensor is waterproof according to IP68 and suitable for use in demanding environments.
• RS485 Interface: Supports the Modbus RTU protocol for easy integration into industrial systems.
• Stable Measurements: Provides reliable data even under changing environmental conditions.
• Easy Installation: The sensor is flexible in application and can be installed in various water environments.

Application Examples:

• Monitoring water turbidity in wastewater treatment plants.
• Controlling turbidity in aquaculture to ensure optimal water conditions.
• Monitoring drinking water quality in municipal supply systems.
• Environmental monitoring of rivers and lakes.
• Quality control of water in industrial processes.

Documentation:

• Dragino Wiki

Technical Specifications:

• Manufacturer: Dragino
• Manufacturer SKU: DR-TS1
• Measurement Range: 0.1 to 1,000 NTU
• Resolution: 0.1 NTU
• Communication: RS485
• Operating Temperature: 0°C to 60°C
• Protection Class: IP68
• Power Supply: DC 5-24V
• Pressure Resistance: Up to 0.6 MPa
• Cable Length: 2m
• Dimensions: 30 x 30 x 205mm
• Weight: 384g

Package Contents:

• 1x DR-TS1 Water Turbidity Sensor RS485
