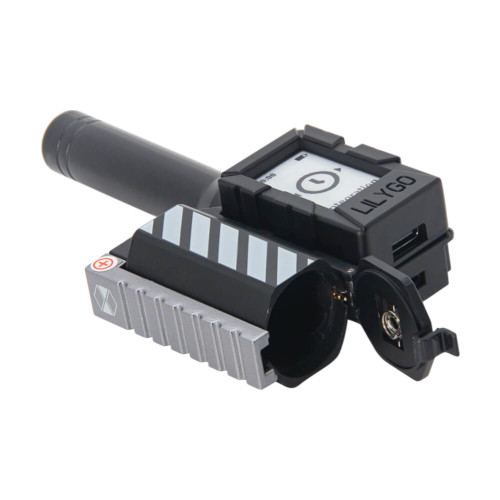

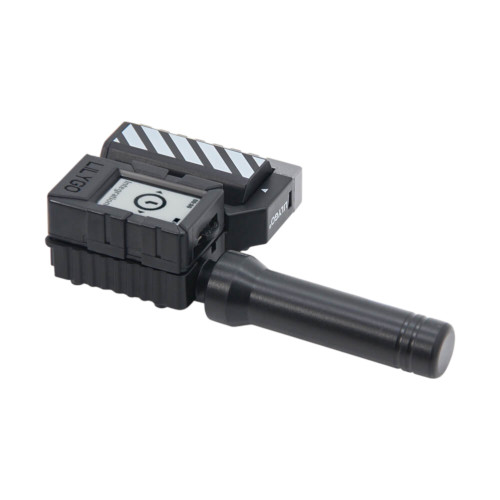

LilyGo TTGO T-Mini ESP32- S3 EU868 with 1 inch E-Paper Display

The LILYGO T-Mini E-Paper S3 is an ultra-compact development board that combines an ESP32-S3 microcontroller with a 1.02-inch E-Paper display and LoRa radio technology. The ESP32-S3FN4R2 processor provides dual-core performance with 4 MB Flash and 2 MB PSRAM as well as integrated Wi-Fi and Bluetooth 5 LE. The E-Paper display retains the displayed content even without power and is excellently readable in direct sunlight. The integrated SX1262 LoRa transceiver operates on the European 868 MHz frequency and enables ranges of several kilometers for mesh networks and IoT communication.

Features:

• ESP32-S3 dual-core processor offers powerful processing at low power consumption
• 1.02-inch E-Paper display is sunlight-readable and retains content without power
• SX1262 LoRa transceiver on 868 MHz enables long-range communication in Europe
• Support for 18350 batteries allows compact mobile use
• TF card slot provides expanded storage for data logging
• Wi-Fi and Bluetooth 5 LE enable local connectivity and configuration

Application Examples:

• Meshtastic node for off-grid communication in remote areas
• Smart price tags and electronic labels in retail
• Environmental sensors with long-term data logging and LoRa transmission
• Weather stations with E-Paper display for power-saving continuous operation
• Asset tracking and inventory monitoring in warehouses and logistics

Documentation:

• GitHub – LilyGO Mini E-Paper S3 Repository

Technical Specifications:

• Manufacturer: LILYGO
• Manufacturer SKU: H676-01
• Microcontroller: ESP32-S3FN4R2 Dual-Core LX7
• Flash Storage: 4 MB
• PSRAM: 2 MB
• Wireless Connectivity: 2.4 GHz Wi-Fi, Bluetooth 5 (LE)
• LoRa Chip: Semtech SX1262
• LoRa Frequency: 868 MHz (EU)
• Display: 1.02-inch E-Paper
• TF Card Slot: Yes
• Battery Support: 18350 LiPo
• RTC: Integrated
• USB Port: USB-C
• Development Environment: Arduino IDE, PlatformIO, ESP-IDF
• Package Dimensions: 117 × 84 × 58 mm
• Gross Weight: 87 g

Scope of Delivery:

• 1× LilyGo TTGO T-Mini ESP32- S3 EU868 with 1-inch E-Paper Display
