DFRobot Lithium Battery Charger

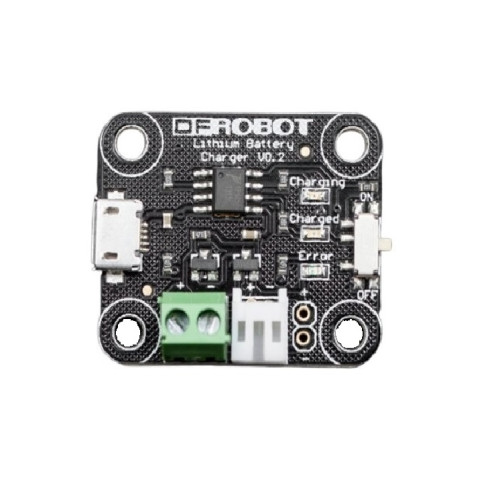

This LiPo Battery Charger from DFRobot is designed to charge batteries with a JST PH2.0 connector plug.  The Lithium Battery Charger can charge 3.7V batteries at a current of 500mA per hour. The charger is designed to charge single-cell Li-ion or Li-Polymer batteries. The board includes a TP4056 charging circuit, a status LED, a battery connection (JST type PH2.0, screw terminal or soldering connection) and a micro-USB connection. Four small mounting holes allow the board to be easily mounted.

Technical details:

• Charge controller chip: TP4056
• Power connection: Micro USB
• Lipo connection: JST PH2.0, screw terminal or soldering connection
• Charging method: Linear
• Operating temperature: -10 degrees to +85 degrees.
• Default charging current: 500mA (R3=2k Ohm can be swapped for higher currents)
• Charging precision: 1.5%
• Input voltage: 4.5V to 5.5V DC
• Full charge voltage: 4.2V
• Mounting hole diameter: 3.2mm
• Weight: 9g
• Dimensions: 3.2 x 2.7 x 10mm

Delivery contents:

• 1x DFRobot Lithium Battery Charger
