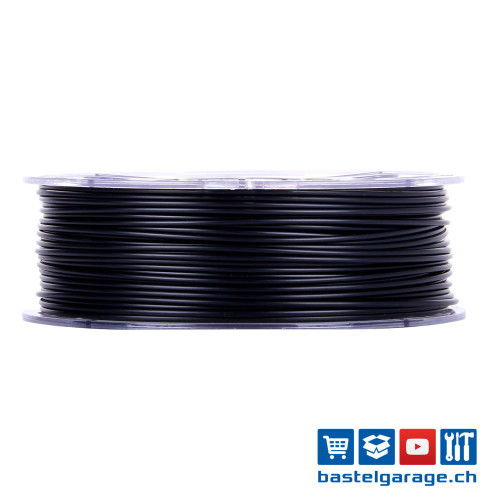

ABS-FR black filament 1.75mm 1Kg eSun

The eABS-Max filament by eSun is a halogen-free, flame-retardant filament according to UL94-V0 standards. Thus, you can also use it for brackets and housings of electrical appliances. Compared to standard ABS, the eABS-Max also offers better toughness and has less wrap effect when printing.

We recommend the eABS-Max filament by eSun for advanced users only, as it is not easy to print.

eABS-Max Characteristics:

• Very resistant and high toughness
• Very good impact resistance
• Flame retardant according to UL94-V0
• Print surfaces can be smoothed with acetone
• Less edge warping and wrapping compared to ABS
• Very good water resistance, only 1% water absorption at normal temperature
• Temperature resistance with no cracking up to -20°
• High accuracy of less than +-0.05mm in diameter
• Top print quality and great value for money

eABS-Max recommended printing parameters:

• Printing temperature: 200-240°C Recommended: 230°C
• Heating bed temperature: 100-110°C Recommended: 105°C
• Fan speed: 0 to 20% Recommendation: 20%
• Feeding speed: 30-90mm/s (1800-5000mm/min)

Download:

• eSun Product Manual
• Filament Data Sheet

Technical details:

• Color: Black
• Item number: ABS-FR175B1P1
• Certified: UL94-V0
• Filament weight: 1Kg
• Diameter: 1.75mm
• Tolerance: +-0.05mm
• Printing temperature: 200-240°C
• Density: 1.05g/cm3
• Melt flow index: 60g/10min
• Impact strength: 48kJ/m²
• Breaking elongation:30%
• Tensile strength: 58MPa
• Thermal stability: Approx. 85°C
• Spool size diameter outside: 20cm
• Spool width: 6.85cm
• Inner diameter (hole): 5.3cm
• Filament weight: 1000g
• Empty spool weight: 229g
• Total weight: 1423g
• Dimensions: 205 x 215 x75mm

Delivery contents:

• 1x eABS-Max black filament 1.75mm 1Kg eSun
