7inch HDMI Capacitive Touch Display Round 1080x1080

The Waveshare 7inch 1080x1080 LCD is a circular IPS display with a square resolution of 1080 × 1080 pixels, where the round glass covers the corners of the image, creating a fully circular display area. The IPS panel offers a viewing angle of 160° and a brightness of 800 cd/m², making the display easily readable even in bright environments. The front glass, made of 6H hardness tempered glass, is directly bonded to the LCD panel through optical bonding, minimizing internal reflections and improving image clarity.

Features:

Circular IPS panel with 1080 × 1080 pixels and 800 cd/m² brightness is suitable for well-lit environments and outdoor applications
Optical bonding between cover glass (6H) and LCD panel reduces reflections, improves contrast and prevents dust ingress
10-point capacitive touch via USB-C enables full multi-touch gestures under Raspberry Pi OS, driver-free and ready to use
HDMI video input and USB-C touch/power ensure broad compatibility with Raspberry Pi, Jetson, Windows PC, and laptop

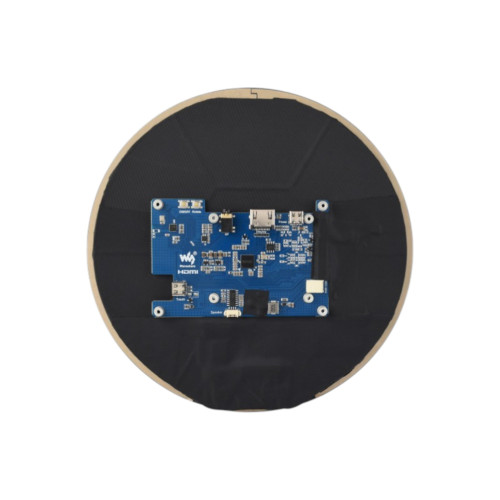

GPIO mounting standoffs on the back allow direct attachment of a Raspberry Pi for a compact unit setup
Physical buttons for power on/off and screen rotation as well as brightness control via software allow easy operation without OS intervention

Application Examples:

Smart home control panel with circular, customized user interface based on a Raspberry Pi
Dashboard display for vehicles or desktop widgets with clock, weather, or sensor displays
Interactive information kiosk or digital signage element with unusual, attractive design
Industrial HMI panel for control and monitoring applications in production facilities
Retro-futuristic gaming experience or creative installation art with customized circular interface

Documentation:

Waveshare Docs – 7inch 1080x1080 LCD

Specifications:

Manufacturer: Waveshare
Manufacturer SKU: 33686
EAN: 0792649738221
Display size: 7 inches (diagonal), round shape
Resolution: 1080 × 1080 pixels
Display type: IPS
Viewing angle: 160°
Brightness: 800 cd/m²
Touchscreen: Capacitive, 10-point
Touch interface: USB-C
Front glass: 6H tempered glass, optical bonding
Video interface: HDMI
Power supply: USB-C or 40-Pin GPIO (Raspberry Pi)
Audio output: 3.5mm jack, 4-Pin speaker header
Buttons: Power on/off, screen rotation
Raspberry Pi mounting: GPIO standoffs on the back
Compatibility: Raspberry Pi (all versions), Jetson series, Windows 11/10/8.1/8/7, Ubuntu, Kali, Retropie
10-point touch: Raspberry Pi OS, Retropie (driver-free)
Single-point touch: Ubuntu, Kali, Windows 10 IoT, Jetson (driver-free)
Package dimensions: 380 × 226 × 55 mm
Gross weight: 696 g
