5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

This 5-inch large touch display is perfect for mounting on a Raspberry Pi with a DSI interface. With the included DSI connection cable and mounting material, this high-quality touch display can be neatly attached to a Raspberry Pi.

Features:

• IPS screen with a resolution of 800x480
• Supports common Raspberry Pi: 4B/3B+/3A+/3B/2B/B+/A+
• Touch display with 5-point touch
• Scratch-resistant display made of hardened glass

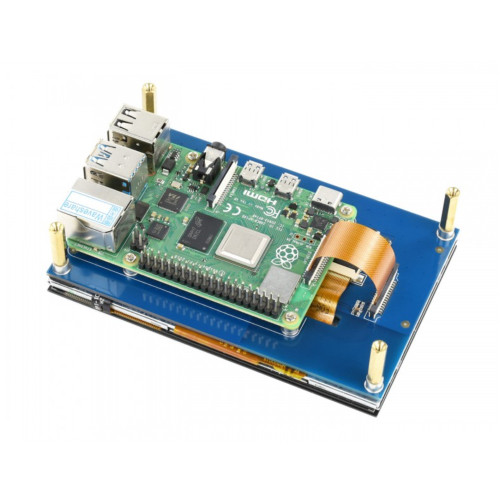

Connection example Raspberry Pi 4

Display dimension:

Documentation:

• Waveshare Wiki

Technical Details:

• Manufacturer: Waveshare
• Manufacturer SKU: 18396
• LCD Type: IPS
• Size: 5 inch
• Resolution: 800x480
• Touch Interface: I2c
• Touch Screen Type: Capacitive
• Compatible Raspberry Pi: 4B/3B+/3A+/3B/2B/B+/A+
• Dimension: 76 x 121 x 14mm
• Weight: 140g

Package Included:

• 1x 5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800x480
• 1x Screw set with distance holder for Raspberry Pi
• 1x DSI Connection Cable
